2-647134-3

Agastat Relays / TE Connectivity

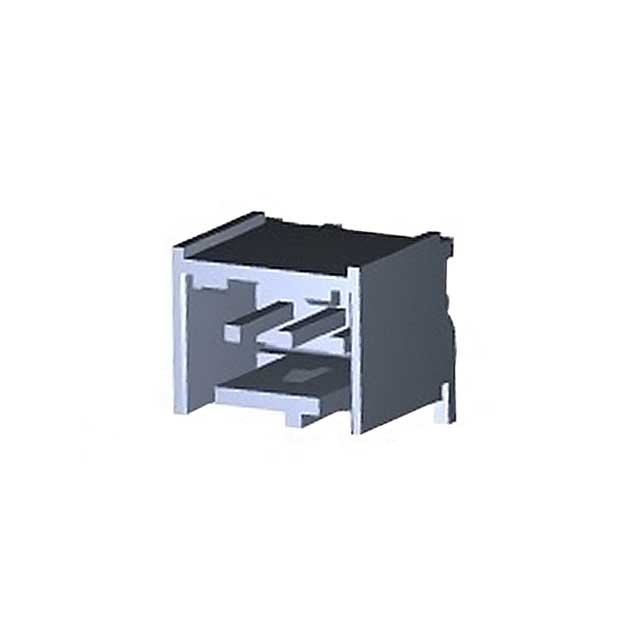

Image may be representation. See specifications for product details.

Product Overview

Part Number:	2-647134-3
Manufacturer/Brand:	Agastat Relays / TE Connectivity
Product description	CONN HEADER 3POS R/A .156 GOLD
Datasheets:	2-647134-3.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	61774 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 61774 pcs

Reference Price (In US Dollars)

500 pcs: $0.641

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$0.641

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of 2-647134-3

Part Number	2-647134-3	Manufacturer	Agastat Relays / TE Connectivity
Description	CONN HEADER 3POS R/A .156 GOLD	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	61774 pcs	Data sheet	2-647134-3.pdf
Voltage Rating	600VAC	Termination	Solder
Style	Board to Cable/Wire	Shrouding	Shrouded - 4 Wall
Series	MTA-156	Row Spacing - Mating	-
Pitch - Mating	0.156" (3.96mm)	Packaging	Bulk
Overall Contact Length	-	Operating Temperature	-55°C ~ 105°C
Number of Rows	1	Number of Positions Loaded	All
Number of Positions	3	Mounting Type	Through Hole, Right Angle
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Material Flammability Rating	UL94 V-0
Mated Stacking Heights	-	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Insulation Material	Thermoplastic, Glass Filled	Insulation Height	0.455" (11.56mm)
Insulation Color	Black	Ingress Protection	-
Features	-	Fastening Type	Friction Lock
Detailed Description	Connector Header Through Hole, Right Angle 3 position 0.156" (3.96mm)	Current Rating	Varies by Wire Gauge
Contact Type	Male Pin	Contact Shape	Square
Contact Material	Copper Alloy	Contact Length - Post	0.125" (3.18mm)
Contact Length - Mating	0.300" (7.62mm)	Contact Finish Thickness - Post	-
Contact Finish Thickness - Mating	30.0µin (0.76µm)	Contact Finish - Post	Tin
Contact Finish - Mating	Gold	Connector Type	Header
Applications	General Purpose, Industrial
