2-5499141-1

Agastat Relays / TE Connectivity

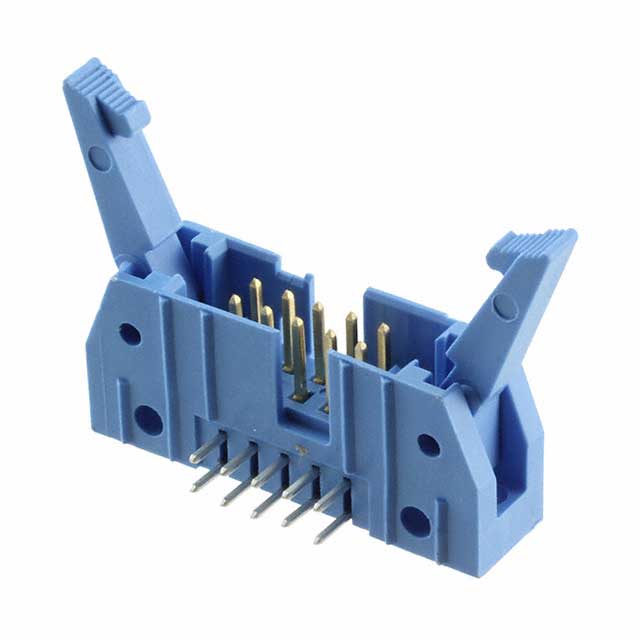

Image may be representation. See specifications for product details.

Product Overview

Part Number:	2-5499141-1
Manufacturer/Brand:	Agastat Relays / TE Connectivity
Product description	CONN HEADER 10POS R/A POLAR GOLD
Datasheets:	2-5499141-1.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	12978 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 12978 pcs

Reference Price (In US Dollars)

1 pcs: $2.774

72 pcs: $2.313

144 pcs: $2.198

504 pcs: $1.851

1008 pcs: $1.619

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$2.774

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of 2-5499141-1

Part Number	2-5499141-1	Manufacturer	Agastat Relays / TE Connectivity
Description	CONN HEADER 10POS R/A POLAR GOLD	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	12978 pcs	Data sheet	2-5499141-1.pdf
Voltage Rating	250VAC	Termination	Solder
Style	Board to Cable/Wire	Shrouding	Shrouded - 4 Wall
Series	AMP-Latch	Row Spacing - Mating	0.100" (2.54mm)
Pitch - Mating	0.100" (2.54mm)	Packaging	Bulk
Overall Contact Length	-	Other Names	2-5499141-1-ND A123148
Operating Temperature	-65°C ~ 105°C	Number of Rows	2
Number of Positions Loaded	All	Number of Positions	10
Mounting Type	Through Hole, Right Angle	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Material Flammability Rating	UL94 V-0	Mated Stacking Heights	-
Manufacturer Standard Lead Time	22 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Insulation Material	-	Insulation Height	0.315" (8.00mm)
Insulation Color	Blue	Ingress Protection	-
Features	Keying Slot, Mounting Flange	Fastening Type	Latch Lock/Eject Hooks, Long
Detailed Description	Connector Header Through Hole, Right Angle 10 position 0.100" (2.54mm)	Current Rating	1A per Contact
Contact Type	Male Pin	Contact Shape	Square
Contact Material	Brass	Contact Length - Post	0.110" (2.79mm)
Contact Length - Mating	0.240" (6.10mm)	Contact Finish Thickness - Post	100.0µin (2.54µm)
Contact Finish Thickness - Mating	30.0µin (0.76µm)	Contact Finish - Post	Tin
Contact Finish - Mating	Gold or Gold-Palladium	Connector Type	Header
Applications	-
