2-534237-8

Agastat Relays / TE Connectivity

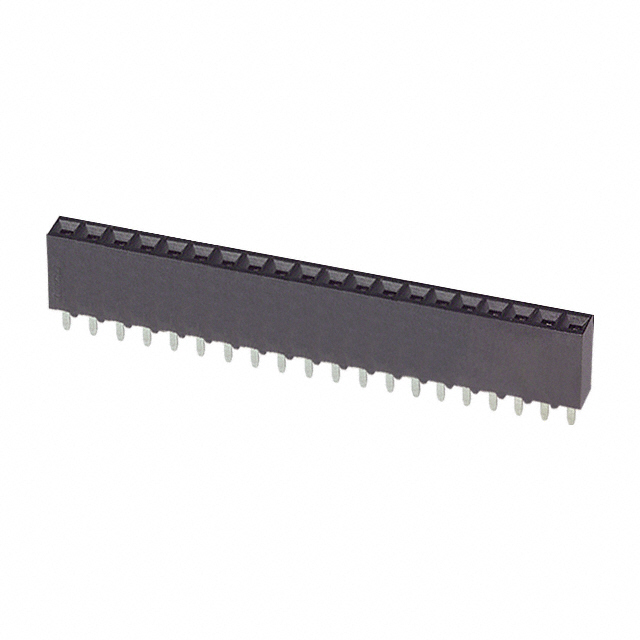

Image may be representation. See specifications for product details.

Product Overview

Part Number:	2-534237-8
Manufacturer/Brand:	Agastat Relays / TE Connectivity
Product description	CONN RECEPT 30POS .100 VERT AU
Datasheets:	2-534237-8.pdf
RoHs Status	Contains lead / RoHS non-compliant
Stock Condition	23328 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 23328 pcs

Reference Price (In US Dollars)

1 pcs: $1.535

14 pcs: $1.474

28 pcs: $1.351

56 pcs: $1.29

105 pcs: $1.228

252 pcs: $1.075

504 pcs: $1.044

1001 pcs: $0.89

2506 pcs: $0.829

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$1.535

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of 2-534237-8

Part Number	2-534237-8	Manufacturer	Agastat Relays / TE Connectivity
Description	CONN RECEPT 30POS .100 VERT AU	Lead Free Status / RoHS Status	Contains lead / RoHS non-compliant
Quantity Available	23328 pcs	Data sheet	2-534237-8.pdf
Voltage Rating	-	Termination	Solder
Style	Board to Board or Cable	Series	AMPMODU Mod IV
Row Spacing - Mating	-	Pitch - Mating	0.100" (2.54mm)
Packaging	Tube	Other Names	2-534237-8-ND 25342378 A26429
Operating Temperature	-65°C ~ 125°C	Number of Rows	1
Number of Positions Loaded	All	Number of Positions	30
Mounting Type	Through Hole	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Material Flammability Rating	-	Mated Stacking Heights	-
Manufacturer Standard Lead Time	15 Weeks	Lead Free Status / RoHS Status	Contains lead / RoHS non-compliant
Insulation Material	Polyester, Glass Filled	Insulation Height	0.340" (8.64mm)
Insulation Color	Black	Ingress Protection	-
Features	-	Fastening Type	Push-Pull
Detailed Description	30 Position Receptacle Connector 0.100" (2.54mm) Through Hole Gold	Current Rating	2A
Contact Type	Female Socket	Contact Shape	Square
Contact Material	Phosphor Bronze	Contact Length - Post	0.115" (2.92mm)
Contact Finish Thickness - Post	150.0µin (3.81µm)	Contact Finish Thickness - Mating	30.0µin (0.76µm)
Contact Finish - Post	Tin-Lead	Contact Finish - Mating	Gold
Connector Type	Receptacle	Applications	-
