2-2299004-1

Agastat Relays / TE Connectivity

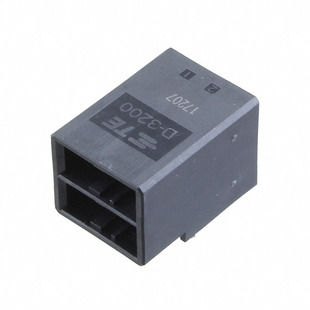

Image may be representation. See specifications for product details.

Product Overview

Part Number:	2-2299004-1
Manufacturer/Brand:	Agastat Relays / TE Connectivity
Product description	DYNAMIC D3200M FMLB HDR ASSY 4P
Datasheets:	1.2-2299004-1.pdf 2.2-2299004-1.pdf 3.2-2299004-1.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	21876 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 21876 pcs

Reference Price (In US Dollars)

1 pcs: $1.496

26 pcs: $1.316

104 pcs: $1.196

520 pcs: $1.017

1014 pcs: $0.867

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:
Qty:

Total:$1.496

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of 2-2299004-1

Part Number	2-2299004-1	Manufacturer	Agastat Relays / TE Connectivity
Description	DYNAMIC D3200M FMLB HDR ASSY 4P	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	21876 pcs	Data sheet	1.2-2299004-1.pdf 2.2-2299004-1.pdf 3.2-2299004-1.pdf
Voltage Rating	600V	Termination	Solder
Style	Board to Cable/Wire	Shrouding	Shrouded - 4 Wall
Series	Dynamic D3200M	Row Spacing - Mating	0.300" (7.62mm)
Pitch - Mating	0.200" (5.08mm)	Packaging	Bulk
Overall Contact Length	-	Other Names	A126881
Operating Temperature	-55°C ~ 105°C	Number of Rows	2
Number of Positions Loaded	All	Number of Positions	4
Mounting Type	Through Hole, Right Angle	Moisture Sensitivity Level (MSL)	Not Applicable
Material Flammability Rating	UL94 V-0	Mated Stacking Heights	-
Manufacturer Standard Lead Time	41 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Insulation Material	Thermoplastic, Polyester	Insulation Height	0.727" (18.47mm)
Insulation Color	Black	Ingress Protection	-
Features	Board Lock	Fastening Type	-
Detailed Description	Connector Header Through Hole, Right Angle 4 position 0.200" (5.08mm)	Current Rating	Varies by Wire Gauge
Contact Type	Male Pin	Contact Shape	Rectangular
Contact Material	Copper Alloy	Contact Length - Post	0.134" (3.40mm)
Contact Length - Mating	-	Contact Finish Thickness - Post	-
Contact Finish Thickness - Mating	15.0µin (0.38µm)	Contact Finish - Post	Tin
Contact Finish - Mating	Gold	Connector Type	Header
Applications	Automotive, General Purpose, Industrial
