2-2013325-1

Agastat Relays / TE Connectivity

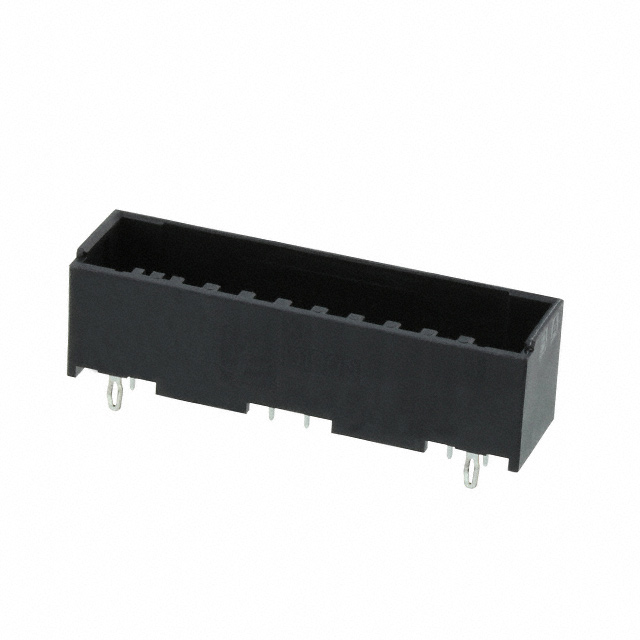

Image may be representation. See specifications for product details.

Product Overview

Part Number:	2-2013325-1
Manufacturer/Brand:	Agastat Relays / TE Connectivity
Product description	DYNAMIC 1900D HDR ASSY V-TYPE 22
Datasheets:	2-2013325-1.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	12747 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 12747 pcs

Reference Price (In US Dollars)

1 pcs: $2.308

10 pcs: $2.213

25 pcs: $2.021

50 pcs: $1.925

100 pcs: $1.828

250 pcs: $1.636

500 pcs: $1.54

1000 pcs: $1.347

2500 pcs: $1.28

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:
Qty:

Total:$2.308

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of 2-2013325-1

Part Number	2-2013325-1	Manufacturer	Agastat Relays / TE Connectivity
Description	DYNAMIC 1900D HDR ASSY V-TYPE 22	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	12747 pcs	Data sheet	2-2013325-1.pdf
Voltage Rating	150V	Termination	Solder
Style	Board to Board or Cable	Shrouding	Shrouded - 4 Wall
Series	Dynamic D-1900	Row Spacing - Mating	0.130" (3.30mm)
Pitch - Mating	0.138" (3.50mm)	Packaging	Bulk
Overall Contact Length	-	Other Names	A120589
Operating Temperature	-30°C ~ 105°C	Number of Rows	2
Number of Positions Loaded	All	Number of Positions	22
Mounting Type	Through Hole	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Material Flammability Rating	UL94 V-0	Mated Stacking Heights	-
Manufacturer Standard Lead Time	11 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Insulation Material	Polyamide (PA66), Nylon 6/6, Glass Filled	Insulation Height	0.490" (12.44mm)
Insulation Color	Black	Ingress Protection	-
Features	Board Lock	Fastening Type	Detent Lock
Detailed Description	Connector Header Through Hole 22 position 0.138" (3.50mm)	Current Rating	4A
Contact Type	Tab	Contact Shape	Rectangular
Contact Material	Copper Alloy	Contact Length - Post	0.120" (3.05mm)
Contact Length - Mating	-	Contact Finish Thickness - Post	78.7µin (2.00µm)
Contact Finish Thickness - Mating	15.0µin (0.38µm)	Contact Finish - Post	Tin
Contact Finish - Mating	Gold	Connector Type	Header
Applications	General Purpose, Industrial
