2-1825143-7

Agastat Relays / TE Connectivity

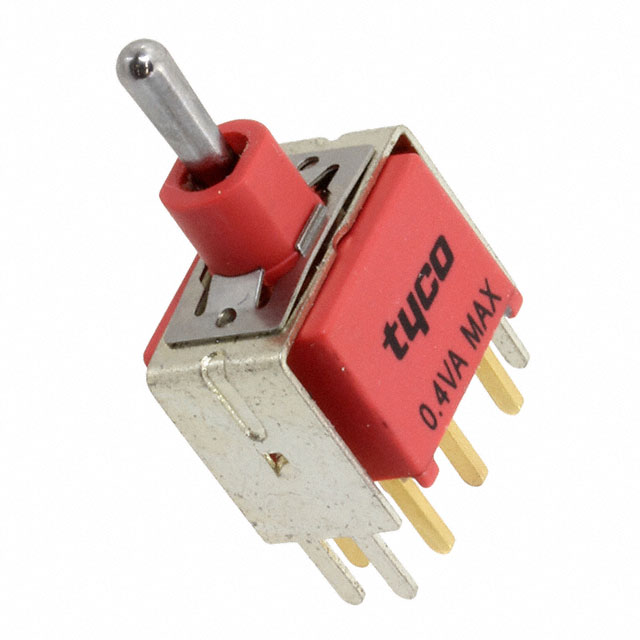

Image may be representation. See specifications for product details.

Product Overview

Part Number:	2-1825143-7
Manufacturer/Brand:	Agastat Relays / TE Connectivity
Product description	SWITCH TOGGLE SP3T 0.4VA 20V
Datasheets:	1.2-1825143-7.pdf 2.2-1825143-7.pdf 3.2-1825143-7.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	18858 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

Download Product Details PDF

In Stock 18858 pcs

Reference Price (In US Dollars)

500 pcs: $2.013

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$2.013

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of 2-1825143-7

Part Number	2-1825143-7	Manufacturer	Agastat Relays / TE Connectivity
Description	SWITCH TOGGLE SP3T 0.4VA 20V	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	18858 pcs	Data sheet	1.2-1825143-7.pdf 2.2-1825143-7.pdf 3.2-1825143-7.pdf
Voltage Rating - DC	20V	Voltage Rating - AC	20V
Termination Style	PC Pin	Switch Function	On-On-On
Series	Gemini AE	Panel Cutout Dimensions	-
Packaging	Bulk	Other Names	450-1923 AE211MD1V30B04 AE211MD1V30B04-ND
Operating Temperature	-30°C ~ 85°C	Mounting Type	Through Hole
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Manufacturer Standard Lead Time	9 Weeks
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Ingress Protection	IP67 - Dust Tight, Waterproof
Illumination Voltage (Nominal)	-	Illumination Type, Color	-
Illumination	Non-Illuminated	Features	Jumper needed to achieve triple throw
Electrical Life	6,000 Cycles	Detailed Description	Toggle Switch SP3T Through Hole
Current Rating	0.4VA (AC/DC)	Circuit	SP3T
Bushing Thread	Unthreaded	Actuator Type	Standard Round
Actuator Material	Brass, Nickel Plated	Actuator Length	7.62mm
