2-1825059-3

Agastat Relays / TE Connectivity

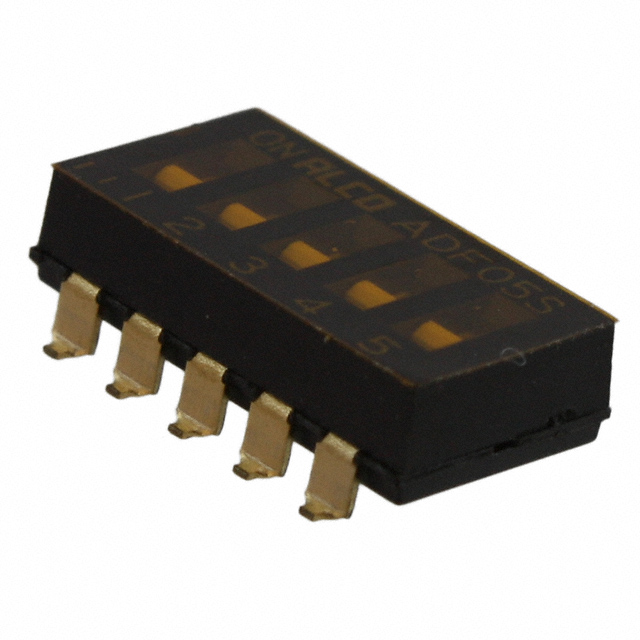

Image may be representation. See specifications for product details.

Product Overview

Part Number:	2-1825059-3
Manufacturer/Brand:	Agastat Relays / TE Connectivity
Product description	SWITCH SLIDE DIP SPST 100MA 24V
Datasheets:	2-1825059-3.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	35101 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

Download Product Details PDF

In Stock 35101 pcs

Reference Price (In US Dollars)

1 pcs: $1.127

10 pcs: $1.082

30 pcs: $1.034

60 pcs: $0.987

120 pcs: $0.87

270 pcs: $0.823

510 pcs: $0.799

1020 pcs: $0.682

5010 pcs: $0.635

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$1.127

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of 2-1825059-3

Part Number	2-1825059-3	Manufacturer	Agastat Relays / TE Connectivity
Description	SWITCH SLIDE DIP SPST 100MA 24V	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	35101 pcs	Data sheet	2-1825059-3.pdf
Washable	Yes	Voltage Rating	24VDC
Termination Style	Gull Wing	Series	ADF
Pitch	0.100" (2.54mm), Full	Packaging	Tube
Other Names	2-1825059-3-ND 218250593 450-1797 ADF05ST04 ADF05ST04-ND	Operating Temperature	-30°C ~ 85°C
Number of Positions	5	Mounting Type	Surface Mount
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Mechanical Life	1,000 Cycles
Manufacturer Standard Lead Time	4 Weeks	Length	0.578" (14.68mm)
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Height Above Board	0.177" (4.50mm)
Features	Tape Seal	Electrical Life	1,000 Cycles
Detailed Description	Dip Switch SPST 5 Position Surface Mount Slide (Standard) Actuator 100mA 24VDC	Current Rating	100mA
Contact Material	Copper Alloy	Contact Finish	Gold
Circuit	SPST	Body Material	Polyphenylene Sulfide (PPS)
Actuator Type	Slide (Standard)	Actuator Level	Flush, Recessed
