2-178294-2

Agastat Relays / TE Connectivity

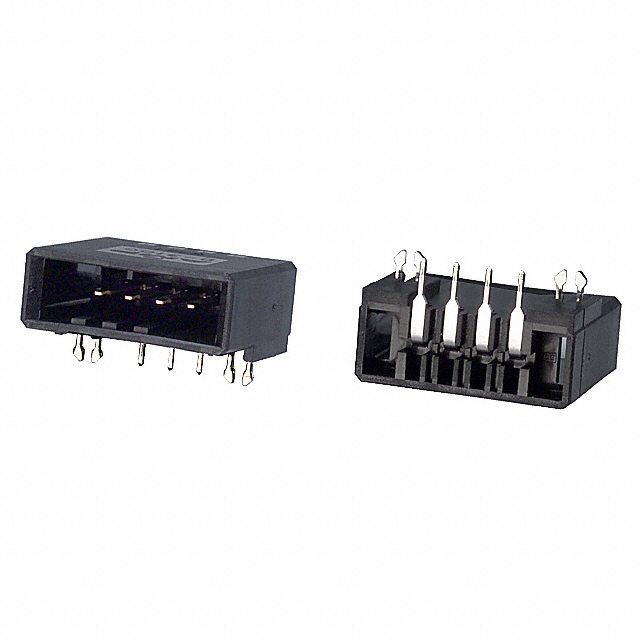

Image may be representation. See specifications for product details.

Product Overview

Part Number:	2-178294-2
Manufacturer/Brand:	Agastat Relays / TE Connectivity
Product description	CONN HDR 4POS R/A KEY-Y 15GOLD
Datasheets:	2-178294-2.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	95142 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 95142 pcs

Reference Price (In US Dollars)

6080 pcs: $0.372

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$0.372

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of 2-178294-2

Part Number	2-178294-2	Manufacturer	Agastat Relays / TE Connectivity
Description	CONN HDR 4POS R/A KEY-Y 15GOLD	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	95142 pcs	Data sheet	2-178294-2.pdf
Voltage Rating	250V	Termination	Solder
Style	Board to Board or Cable	Shrouding	Shrouded - 4 Wall
Series	Dynamic D-3100	Row Spacing - Mating	-
Pitch - Mating	0.150" (3.81mm)	Packaging	Bulk
Overall Contact Length	-	Other Names	A29444
Operating Temperature	-55°C ~ 105°C	Number of Rows	1
Number of Positions Loaded	All	Number of Positions	4
Mounting Type	Through Hole, Right Angle	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Material Flammability Rating	UL94 V-0	Mated Stacking Heights	-
Manufacturer Standard Lead Time	12 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Insulation Material	Thermoplastic, Polyester, Glass Filled	Insulation Height	0.368" (9.35mm)
Insulation Color	Black	Ingress Protection	-
Features	Board Lock	Fastening Type	Detent Lock
Detailed Description	Connector Header Through Hole, Right Angle 4 position 0.150" (3.81mm)	Current Rating	-
Contact Type	Tab	Contact Shape	Rectangular
Contact Material	Copper Alloy	Contact Length - Post	0.150" (3.81mm)
Contact Length - Mating	-	Contact Finish Thickness - Post	-
Contact Finish Thickness - Mating	15.0µin (0.38µm)	Contact Finish - Post	Tin
Contact Finish - Mating	Gold	Connector Type	Header
Applications	General Purpose, Industrial
