2-178139-5

Agastat Relays / TE Connectivity

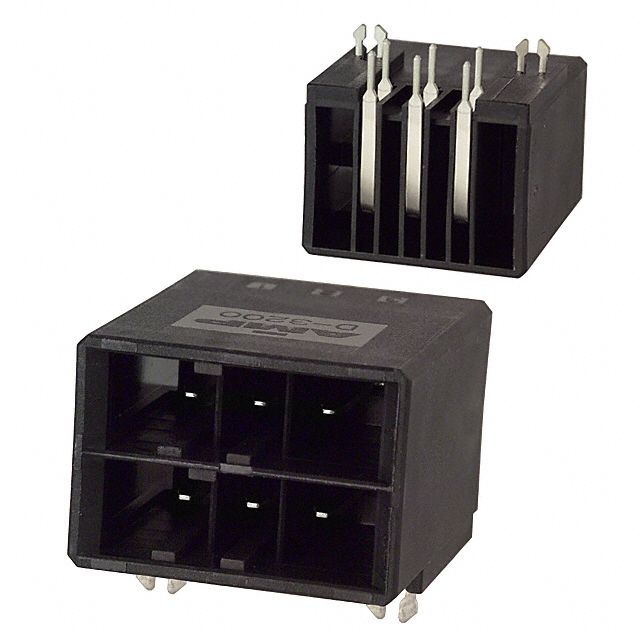

Image may be representation. See specifications for product details.

Product Overview

Part Number:	2-178139-5
Manufacturer/Brand:	Agastat Relays / TE Connectivity
Product description	CONN HDR 6POS R/A KEY-YY TIN
Datasheets:	2-178139-5.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	99466 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 99466 pcs

Reference Price (In US Dollars)

3000 pcs: $0.362

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$0.362

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of 2-178139-5

Part Number	2-178139-5	Manufacturer	Agastat Relays / TE Connectivity
Description	CONN HDR 6POS R/A KEY-YY TIN	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	99466 pcs	Data sheet	2-178139-5.pdf
Voltage Rating	600V	Termination	Solder
Style	Board to Board or Cable	Shrouding	Shrouded - 4 Wall
Series	Dynamic D-3200	Row Spacing - Mating	0.300" (7.62mm)
Pitch - Mating	0.200" (5.08mm)	Packaging	Bulk
Overall Contact Length	-	Other Names	A29399
Operating Temperature	-55°C ~ 105°C	Number of Rows	2
Number of Positions Loaded	All	Number of Positions	6
Mounting Type	Through Hole, Right Angle	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Material Flammability Rating	UL94 V-0	Mated Stacking Heights	-
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Insulation Material	Thermoplastic, Polyester, Glass Filled
Insulation Height	0.668" (16.97mm)	Insulation Color	Black
Ingress Protection	-	Features	Board Lock
Fastening Type	Detent Lock	Detailed Description	Connector Header Through Hole, Right Angle 6 position 0.200" (5.08mm)
Current Rating	-	Contact Type	Tab
Contact Shape	Rectangular	Contact Material	Copper Alloy
Contact Length - Post	0.150" (3.81mm)	Contact Length - Mating	-
Contact Finish Thickness - Post	-	Contact Finish Thickness - Mating	78.7µin (2.00µm)
Contact Finish - Post	Tin	Contact Finish - Mating	Tin
Connector Type	Header	Applications	General Purpose, Industrial
