2-1376386-3

Agastat Relays / TE Connectivity

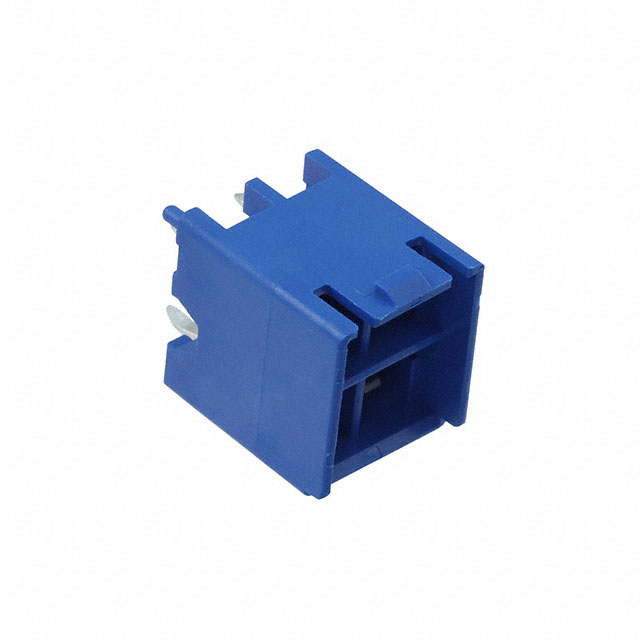

Image may be representation. See specifications for product details.

Product Overview

Part Number:	2-1376386-3
Manufacturer/Brand:	Agastat Relays / TE Connectivity
Product description	5MM B-T-W CONN. 4P(2ROW) HDR A
Datasheets:	2-1376386-3.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	85283 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 85283 pcs

Reference Price (In US Dollars)

1 pcs: $0.361

10 pcs: $0.319

100 pcs: $0.275

500 pcs: $0.225

1000 pcs: $0.20

5000 pcs: $0.175

10000 pcs: $0.166

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$0.361

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of 2-1376386-3

Part Number	2-1376386-3	Manufacturer	Agastat Relays / TE Connectivity
Description	5MM B-T-W CONN. 4P(2ROW) HDR A	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	85283 pcs	Data sheet	2-1376386-3.pdf
Voltage Rating	300VAC	Termination	Kinked Pin, Solder
Style	Board to Cable/Wire	Shrouding	Shrouded - 4 Wall
Series	Power Key	Row Spacing - Mating	0.244" (6.20mm)
Pitch - Mating	0.197" (5.00mm)	Packaging	Bulk
Overall Contact Length	-	Other Names	A125407
Operating Temperature	-40°C ~ 105°C	Number of Rows	2
Number of Positions Loaded	All	Number of Positions	4
Mounting Type	Through Hole	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Material Flammability Rating	UL94 V-0	Mated Stacking Heights	19.4mm
Manufacturer Standard Lead Time	8 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Insulation Material	Polyamide (PA66), Nylon 6/6, Glass Filled	Insulation Height	0.555" (14.10mm)
Insulation Color	Blue	Ingress Protection	-
Features	Board Guide, Glow Wire Compliant	Fastening Type	Locking Ramp
Detailed Description	Connector Header Through Hole 4 position 0.197" (5.00mm)	Current Rating	Varies by Wire Gauge
Contact Type	Tab	Contact Shape	Rectangular
Contact Material	Copper Alloy	Contact Length - Post	0.138" (3.50mm)
Contact Length - Mating	-	Contact Finish Thickness - Post	-
Contact Finish Thickness - Mating	-	Contact Finish - Post	Tin
Contact Finish - Mating	Tin	Connector Type	Header
Applications	General Purpose
