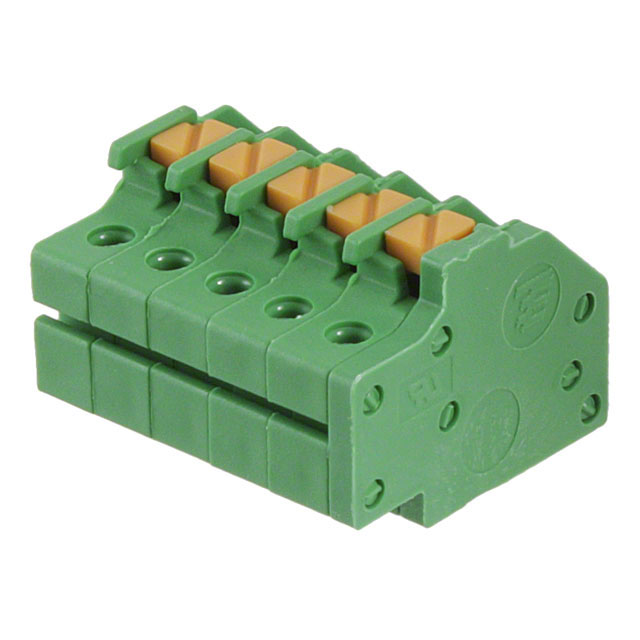

Agastat Relays / TE Connectivity
| Part Number | 1986716-5 | Manufacturer | Agastat Relays / TE Connectivity |
|---|---|---|---|
| Description | TERM BLOCK PLUG 5POS 90DEG 3.5MM | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 30282 pcs | Data sheet | 1.1986716-5.pdf2.1986716-5.pdf |
| Wire Strip Length | 8.5-10mm | Wire Gauge or Range - mm² | 0.5-1.3mm² |
| Wire Gauge or Range - AWG | 16-20 AWG | Voltage - UL | 150V |
| Type | Plug for Unshrouded Header | Torque - Screw | - |
| Termination Style | Screwless - Leg Spring, Push-In Spring | Series | - |
| Screw Size | - | Positions Per Level | 5 |
| Plug Wire Entry | 90° | Pitch | 0.138" (3.50mm) |
| Packaging | Bulk | Other Names | 19867165 A104645 |
| Operating Temperature | -40°C ~ 110°C | Number of Positions | 5 |
| Number of Levels | 1 | Mounting Type | Free Hanging (In-Line) |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Manufacturer Standard Lead Time | 21 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insulation Height | 0.492" (12.50mm) | Ingress Protection | - |
| Housing Material | Polyamide (PA), Nylon | Header Orientation | - |
| Features | Push Button Actuated, Side Stacking | Detailed Description | 5 Position Terminal Block Plug for Unshrouded Header 0.138" (3.50mm) 90° Free Hanging (In-Line) |
| Current - UL | 2A | Current - IEC | - |
| Contact Tail Length | - | Contact Mating Finish | Tin |
| Contact Material | Steel, Stainless | Color | Green |
