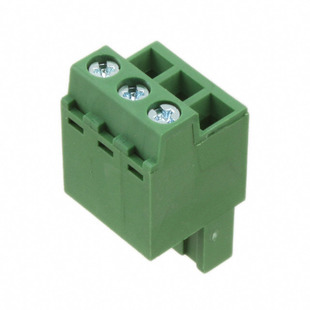

Agastat Relays / TE Connectivity
| Part Number | 1986484-3 | Manufacturer | Agastat Relays / TE Connectivity |
|---|---|---|---|
| Description | TERM BLOCK PLUG 3POS STR 5.08MM | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 33127 pcs | Data sheet | 1986484-3.pdf |
| Wire Strip Length | 10mm | Wire Gauge or Range - mm² | 0.2-2mm² |
| Wire Gauge or Range - AWG | 14-24 AWG | Voltage - UL | 300V |
| Type | Plug, Female Sockets | Torque - Screw | 0.79 Nm (7.0 Lb-In) |
| Termination Style | Screw - Pressure Clip | Series | - |
| Screw Size | - | Positions Per Level | 3 |
| Plug Wire Entry | 180° | Pitch | 0.200" (5.08mm) |
| Packaging | Bulk | Other Names | 19864843 A101147 |
| Operating Temperature | -40°C ~ 105°C | Number of Positions | 3 |
| Number of Levels | 1 | Mounting Type | Free Hanging (In-Line) |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Manufacturer Standard Lead Time | 17 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insulation Height | 0.587" (14.91mm) | Ingress Protection | - |
| Housing Material | Polyamide (PA66), Nylon 6/6 | Header Orientation | - |
| Features | Retention Latches (Non-Wire Side) | Detailed Description | 3 Position Terminal Block Plug, Female Sockets 0.200" (5.08mm) 180° Free Hanging (In-Line) |
| Current - UL | 16A | Current - IEC | - |
| Contact Tail Length | - | Contact Mating Finish | Tin |
| Contact Material | Phosphor Bronze | Color | Green |
