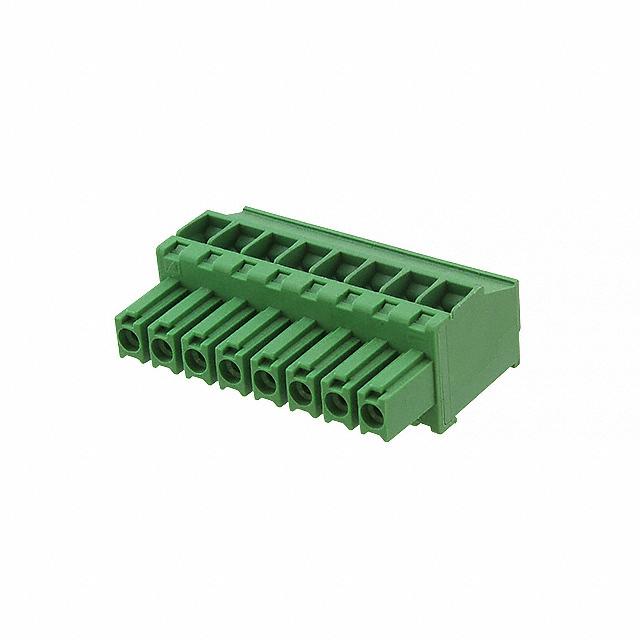

Agastat Relays / TE Connectivity
| Part Number | 1986370-8 | Manufacturer | Agastat Relays / TE Connectivity |
|---|---|---|---|
| Description | TERM BLOCK PLUG 8POS 90DEG 3.5MM | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 7813 pcs | Data sheet | 1986370-8.pdf |
| Wire Strip Length | - | Wire Gauge or Range - mm² | 0.05-2mm² |
| Wire Gauge or Range - AWG | 14-30 AWG | Voltage - UL | 300V |
| Type | Plug, Female Sockets | Torque - Screw | - |
| Termination Style | Screw - Rising Cage Clamp | Series | - |
| Screw Size | M2 | Positions Per Level | 8 |
| Plug Wire Entry | 90° | Pitch | 0.138" (3.50mm) |
| Packaging | Bulk | Other Names | 1986370-8-ND A112924 |
| Operating Temperature | -40°C ~ 110°C | Number of Positions | 8 |
| Number of Levels | 1 | Mounting Type | Free Hanging (In-Line) |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Manufacturer Standard Lead Time | 21 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insulation Height | 0.756" (19.20mm) | Ingress Protection | - |
| Housing Material | Polyamide (PA66), Nylon 6/6 | Header Orientation | - |
| Features | Side Stacking | Detailed Description | 8 Position Terminal Block Plug, Female Sockets 0.138" (3.50mm) 90° Free Hanging (In-Line) |
| Current - UL | 11A | Current - IEC | - |
| Contact Tail Length | - | Contact Mating Finish | Tin |
| Contact Material | Phosphor Bronze | Color | Green |
