1977276-2

Agastat Relays / TE Connectivity

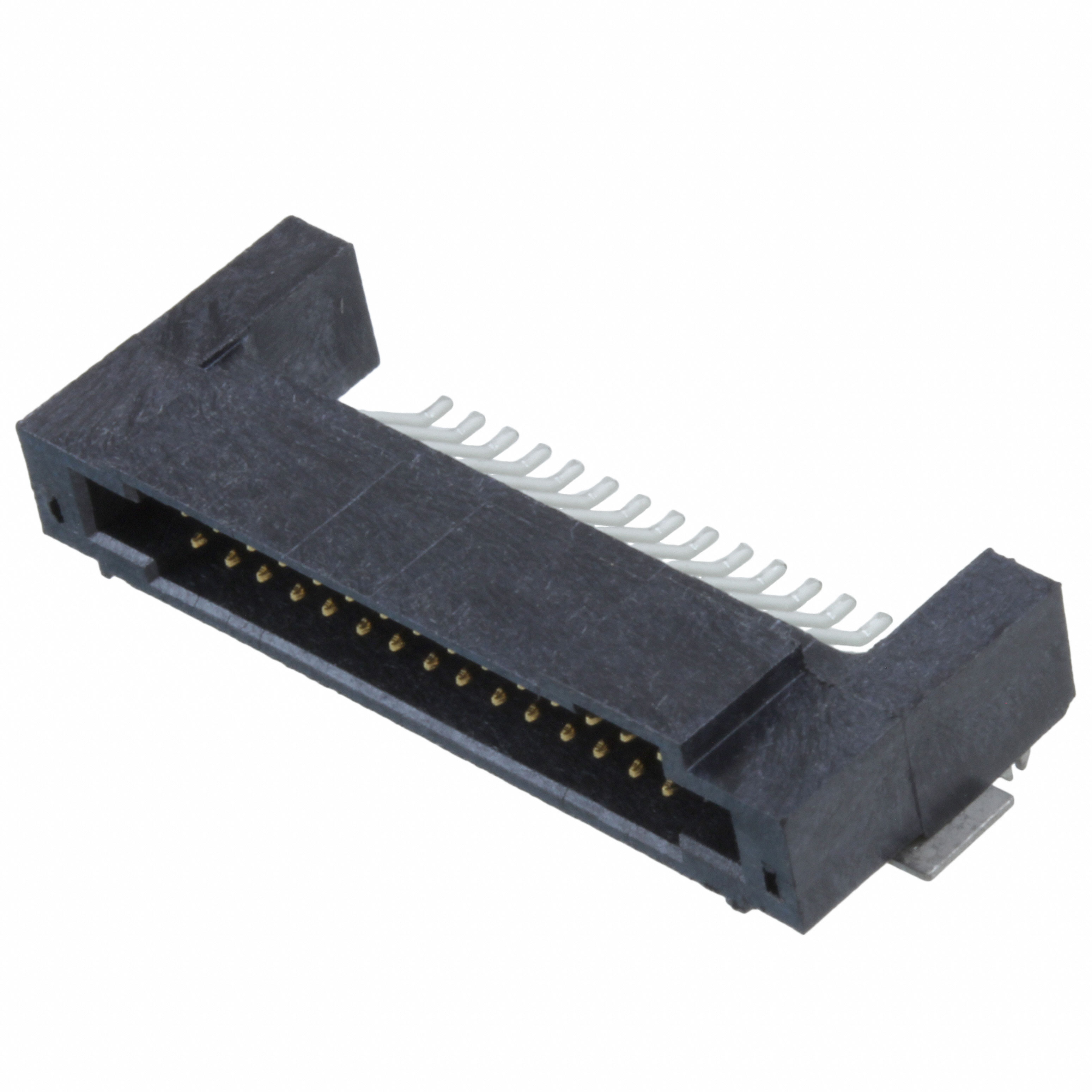

Image may be representation. See specifications for product details.

Product Overview

Part Number:	1977276-2
Manufacturer/Brand:	Agastat Relays / TE Connectivity
Product description	30 50/50 GRID RA HDR
Datasheets:	1977276-2.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	13119 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 13119 pcs

Reference Price (In US Dollars)

1 pcs: $2.756

10 pcs: $2.641

100 pcs: $2.182

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$2.756

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of 1977276-2

Part Number	1977276-2	Manufacturer	Agastat Relays / TE Connectivity
Description	30 50/50 GRID RA HDR	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	13119 pcs	Data sheet	1977276-2.pdf
Voltage Rating	30VAC	Termination	Solder
Style	Board to Board	Shrouding	Shrouded - 4 Wall
Series	AMPMODU 50/50 Grid	Row Spacing - Mating	0.050" (1.27mm)
Pitch - Mating	0.050" (1.27mm)	Packaging	Cut Tape (CT)
Overall Contact Length	-	Other Names	A119748CT
Operating Temperature	-65°C ~ 105°C	Number of Rows	2
Number of Positions Loaded	All	Number of Positions	30
Mounting Type	Surface Mount, Right Angle	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Material Flammability Rating	-	Mated Stacking Heights	-
Manufacturer Standard Lead Time	19 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Insulation Material	Liquid Crystal Polymer (LCP)	Insulation Height	0.213" (5.40mm)
Insulation Color	Black	Ingress Protection	-
Features	Board Lock, Solder Retention	Fastening Type	Push-Pull
Detailed Description	Connector Header Surface Mount, Right Angle 30 position 0.050" (1.27mm)	Current Rating	-
Contact Type	Male Pin	Contact Shape	Circular
Contact Material	Copper Alloy	Contact Length - Post	-
Contact Length - Mating	-	Contact Finish Thickness - Post	150.0µin (3.81µm)
Contact Finish Thickness - Mating	30.0µin (0.76µm)	Contact Finish - Post	Tin-Lead
Contact Finish - Mating	Gold	Connector Type	Header
Applications	Automotive, General Purpose, Medical, Military, Telecommunications
