Agastat Relays / TE Connectivity
| Part Number | 1977105-3 | Manufacturer | Agastat Relays / TE Connectivity |
|---|---|---|---|
| Description | SWITCH SLIDE DIP SPST 10MA 5V | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 12604 pcs | Data sheet | 1977105-3.pdf |
| Washable | Yes | Voltage Rating | 5VDC |
| Termination Style | PC Pin | Series | STR |
| Pitch | 0.100" (2.54mm), Full | Packaging | Tube |
| Other Names | 450-2001 STR06 STR06-ND |
Operating Temperature | -30°C ~ 85°C |
| Number of Positions | 6 | Mounting Type | Through Hole, Right Angle |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Mechanical Life | 1,000 Cycles |
| Manufacturer Standard Lead Time | 18 Weeks | Length | 0.726" (18.44mm) |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Height Above Board | 0.244" (6.20mm) |
| Features | - | Electrical Life | 1,000 Cycles |

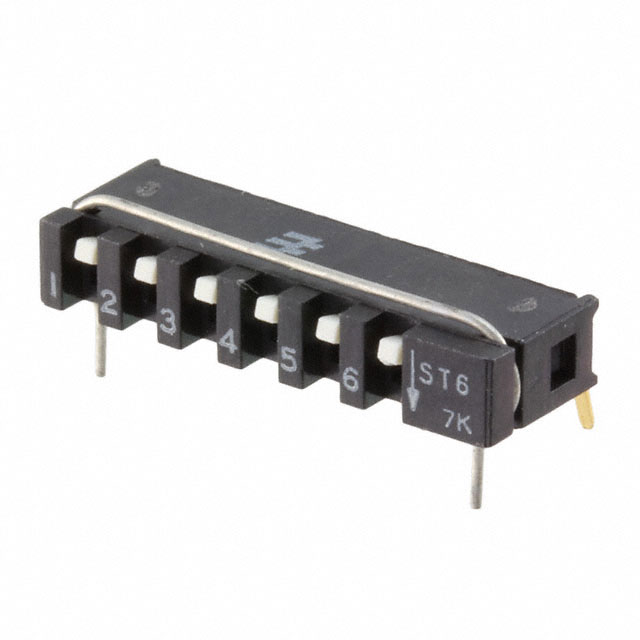

| Detailed Description | Dip Switch SPST 6 Position Through Hole, Right Angle Slide (Standard) Actuator 10mA 5VDC | Current Rating | 10mA |
| Contact Material | Copper Alloy | Contact Finish | Gold |
| Circuit | SPST | Body Material | Polyphenylene Sulfide (PPS) |
| Actuator Type | Slide (Standard) | Actuator Level | Flush, Recessed |
