Agastat Relays / TE Connectivity

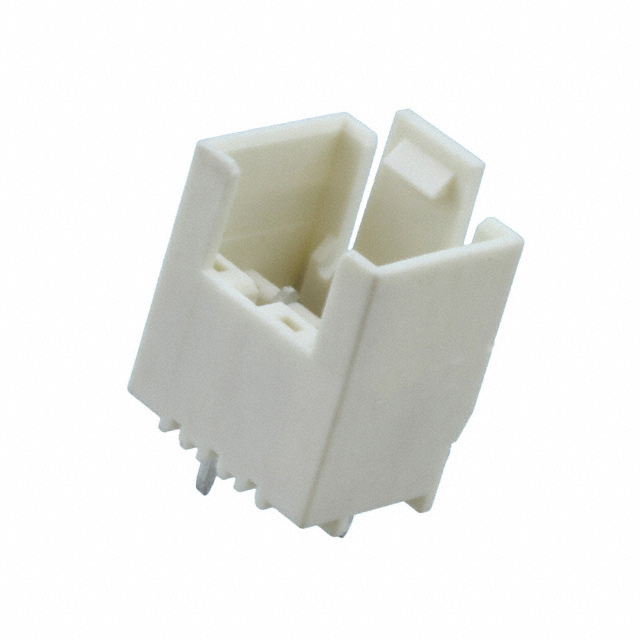

| Part Number | 1971921-3 | Manufacturer | Agastat Relays / TE Connectivity |
|---|---|---|---|
| Description | 2/3P,RAST 2.5 TAB HEADER,EX- LOC | Lead Free Status / RoHS Status | Not applicable / RoHS Compliant |
| Quantity Available | 454872 pcs | Data sheet | 1971921-3.pdf |
| Voltage Rating | - | Termination | Solder |
| Style | Board to Cable/Wire | Shrouding | Shrouded - 4 Wall |
| Series | - | Row Spacing - Mating | - |
| Pitch - Mating | 0.098" (2.50mm) | Packaging | Bulk |
| Overall Contact Length | - | Other Names | A118599 |
| Operating Temperature | -40°C ~ 120°C | Number of Rows | 1 |
| Number of Positions Loaded | 2 | Number of Positions | 3 |
| Mounting Type | Through Hole | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material Flammability Rating | UL94 V-0 | Mated Stacking Heights | - |
| Manufacturer Standard Lead Time | 16 Weeks | Lead Free Status / RoHS Status | Not applicable / RoHS Compliant |
| Insulation Material | Polyamide (PA), Nylon | Insulation Height | 0.610" (15.49mm) |
| Insulation Color | Natural | Ingress Protection | - |
| Features | Board Guide, Glow Wire Compliant | Fastening Type | Locking Ramp |
| Detailed Description | Connector Header Through Hole 3 position 0.098" (2.50mm) | Current Rating | - |
| Contact Type | Tab | Contact Shape | Rectangular |
| Contact Material | Copper Alloy | Contact Length - Post | 0.114" (2.90mm) |
| Contact Length - Mating | - | Contact Finish Thickness - Post | - |
| Contact Finish Thickness - Mating | - | Contact Finish - Post | Tin |
| Contact Finish - Mating | Tin | Connector Type | Header |
| Applications | General Purpose |
