1969570-8

Agastat Relays / TE Connectivity

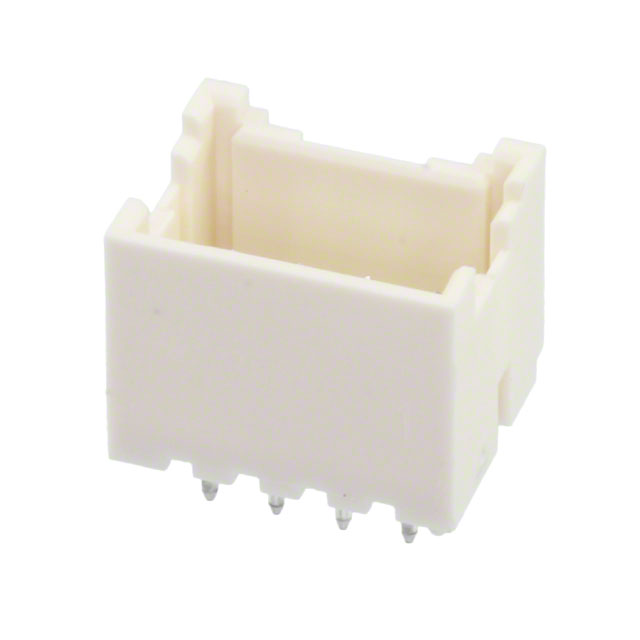

Image may be representation. See specifications for product details.

Product Overview

Part Number:	1969570-8
Manufacturer/Brand:	Agastat Relays / TE Connectivity
Product description	ASSY HDR VERT GWT BOSSED DUAL
Datasheets:	1969570-8.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	137325 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 137325 pcs

Reference Price (In US Dollars)

1 pcs: $0.249

10 pcs: $0.232

100 pcs: $0.178

500 pcs: $0.155

1000 pcs: $0.128

5000 pcs: $0.112

10000 pcs: $0.104

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$0.249

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of 1969570-8

Part Number	1969570-8	Manufacturer	Agastat Relays / TE Connectivity
Description	ASSY HDR VERT GWT BOSSED DUAL	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	137325 pcs	Data sheet	1969570-8.pdf
Voltage Rating	250VAC	Termination	Kinked Pin, Solder
Style	Board to Cable/Wire	Shrouding	Shrouded - 4 Wall
Series	Economy Power 2.5	Row Spacing - Mating	0.098" (2.50mm)
Pitch - Mating	0.098" (2.50mm)	Packaging	Bulk
Overall Contact Length	-	Other Names	A119485
Operating Temperature	-55°C ~ 105°C	Number of Rows	2
Number of Positions Loaded	All	Number of Positions	8
Mounting Type	Through Hole	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Material Flammability Rating	UL94 V-0	Mated Stacking Heights	-
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Insulation Material	Polyamide (PA), Nylon
Insulation Height	0.386" (9.80mm)	Insulation Color	White
Ingress Protection	-	Features	Board Guide, Glow Wire Compliant
Fastening Type	Friction Lock	Detailed Description	Connector Header Through Hole 8 position 0.098" (2.50mm)
Current Rating	4.2A	Contact Type	Male Pin
Contact Shape	Circular	Contact Material	Brass
Contact Length - Post	0.134" (3.40mm)	Contact Length - Mating	-
Contact Finish Thickness - Post	-	Contact Finish Thickness - Mating	-
Contact Finish - Post	Tin	Contact Finish - Mating	Tin
Connector Type	Header	Applications	General Purpose, Industrial, Lighting
