1909782-5

Agastat Relays / TE Connectivity

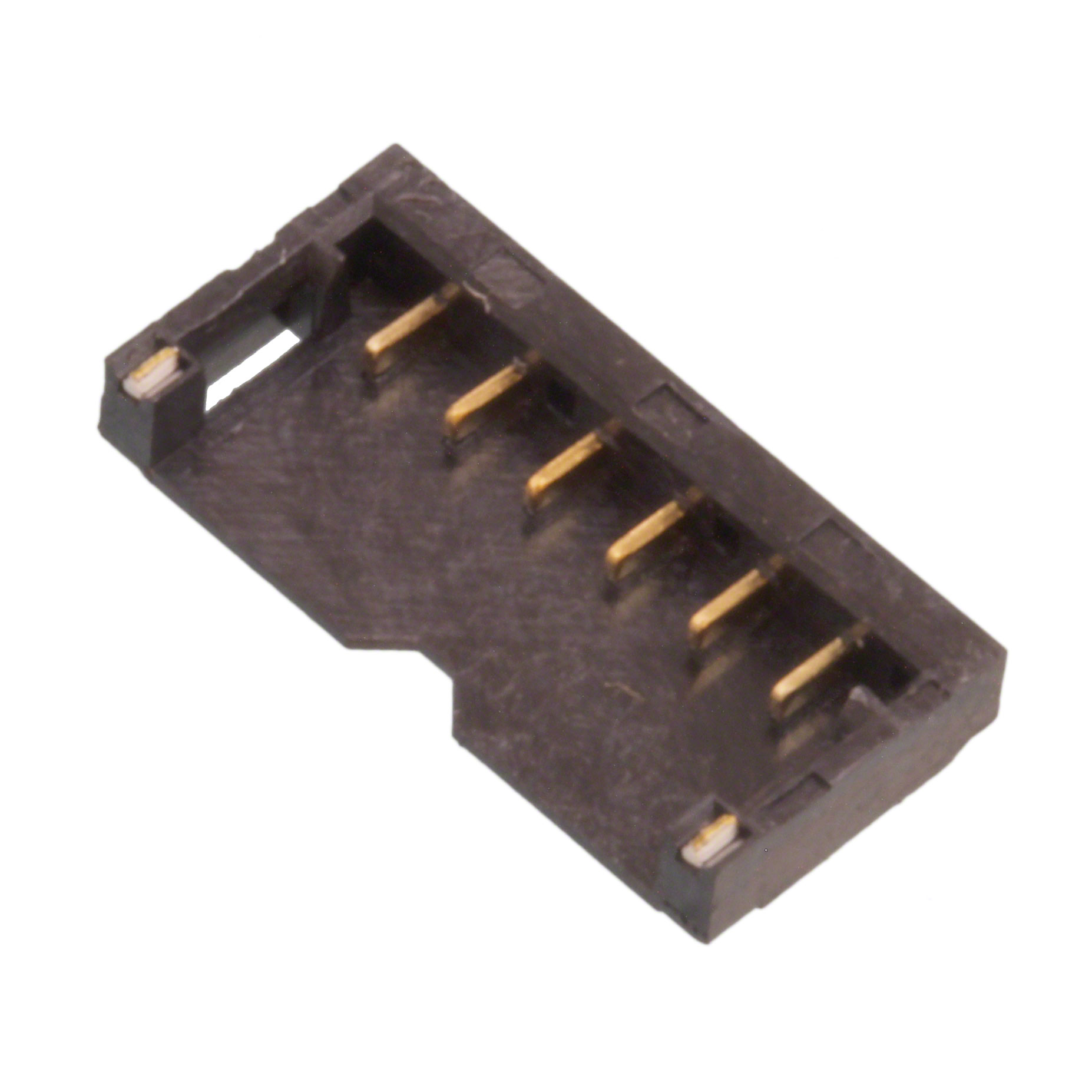

Image may be representation. See specifications for product details.

Product Overview

Part Number:	1909782-5
Manufacturer/Brand:	Agastat Relays / TE Connectivity
Product description	BOARD TO WIRE WAFER 1.2MM TOP EN
Datasheets:	1909782-5.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	157815 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 157815 pcs

Reference Price (In US Dollars)

28000 pcs: $0.185

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$0.185

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of 1909782-5

Part Number	1909782-5	Manufacturer	Agastat Relays / TE Connectivity
Description	BOARD TO WIRE WAFER 1.2MM TOP EN	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	157815 pcs	Data sheet	1909782-5.pdf
Voltage Rating	50VAC	Termination	Solder
Style	Board to Cable/Wire	Shrouding	Shrouded - 3 Wall
Series	High Performance Interconnect (HPI)	Row Spacing - Mating	-
Pitch - Mating	0.047" (1.20mm)	Packaging	Tape & Reel (TR)
Overall Contact Length	-	Other Names	A118081TR
Operating Temperature	-25°C ~ 85°C	Number of Rows	1
Number of Positions Loaded	All	Number of Positions	6
Mounting Type	Surface Mount, Right Angle	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Material Flammability Rating	UL94 V-0	Mated Stacking Heights	-
Manufacturer Standard Lead Time	11 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Insulation Material	Liquid Crystal Polymer (LCP), Glass Filled	Insulation Height	0.055" (1.40mm)
Insulation Color	Black	Ingress Protection	-
Features	Solder Retention	Fastening Type	Friction Lock
Detailed Description	Connector Header Surface Mount, Right Angle 6 position 0.047" (1.20mm)	Current Rating	-
Contact Type	Tab	Contact Shape	Rectangular
Contact Material	Phosphor Bronze	Contact Length - Post	-
Contact Length - Mating	-	Contact Finish Thickness - Post	-
Contact Finish Thickness - Mating	Flash	Contact Finish - Post	-
Contact Finish - Mating	Gold	Connector Type	Header
Applications	Automotive, General Purpose, Industrial, Medical
