1877285-9

Agastat Relays / TE Connectivity

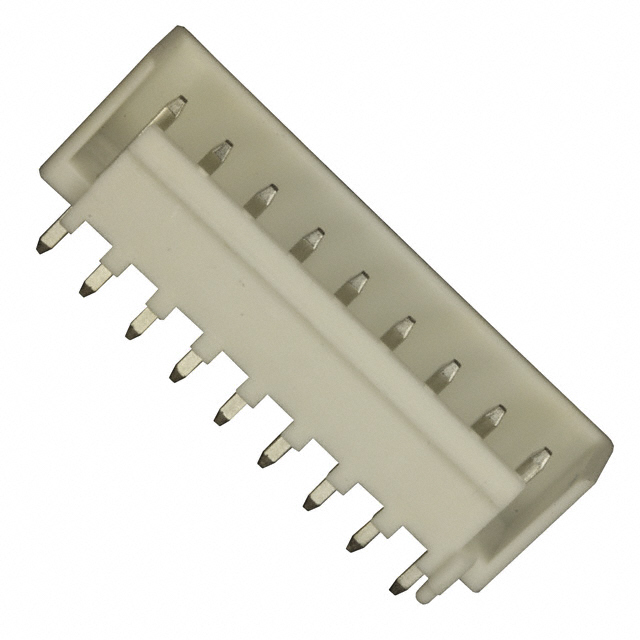

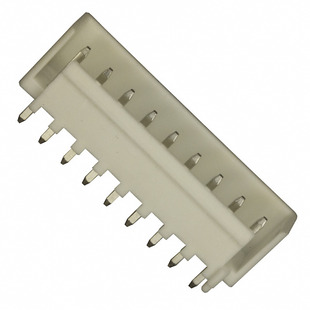

Image may be representation. See specifications for product details.

Product Overview

Part Number:	1877285-9
Manufacturer/Brand:	Agastat Relays / TE Connectivity
Product description	CONN HEADER 9POS STR .156 TIN
Datasheets:	1.1877285-9.pdf 2.1877285-9.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	124062 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 124062 pcs

Reference Price (In US Dollars)

1 pcs: $0.293

10 pcs: $0.258

100 pcs: $0.222

500 pcs: $0.182

1000 pcs: $0.162

5000 pcs: $0.142

10000 pcs: $0.134

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$0.293

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of 1877285-9

Part Number	1877285-9	Manufacturer	Agastat Relays / TE Connectivity
Description	CONN HEADER 9POS STR .156 TIN	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	124062 pcs	Data sheet	1.1877285-9.pdf 2.1877285-9.pdf
Voltage Rating	250VAC	Termination	Solder
Style	Board to Cable/Wire	Shrouding	Shrouded - 4 Wall
Series	Economy Power	Row Spacing - Mating	-
Pitch - Mating	0.156" (3.96mm)	Packaging	Bulk
Overall Contact Length	0.567" (14.40mm)	Other Names	18772859 A99852
Operating Temperature	-25°C ~ 105°C	Number of Rows	1
Number of Positions Loaded	All	Number of Positions	9
Mounting Type	Through Hole	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Material Flammability Rating	UL94 V-0	Mated Stacking Heights	-
Manufacturer Standard Lead Time	16 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Insulation Material	Polybutylene Terephthalate (PBT), Glass Filled	Insulation Height	0.472" (12.00mm)
Insulation Color	White	Ingress Protection	-
Features	Board Guide	Fastening Type	Friction Lock
Detailed Description	Connector Header Through Hole 9 position 0.156" (3.96mm)	Current Rating	7.5A
Contact Type	Male Pin	Contact Shape	Square
Contact Material	Brass	Contact Length - Post	0.142" (3.60mm)
Contact Length - Mating	0.306" (7.77mm)	Contact Finish Thickness - Post	39.4µin (1.00µm)
Contact Finish Thickness - Mating	39.4µin (1.00µm)	Contact Finish - Post	Tin
Contact Finish - Mating	Tin	Connector Type	Header
Applications	General Purpose, Industrial, Lighting
