1825222-7

Agastat Relays / TE Connectivity

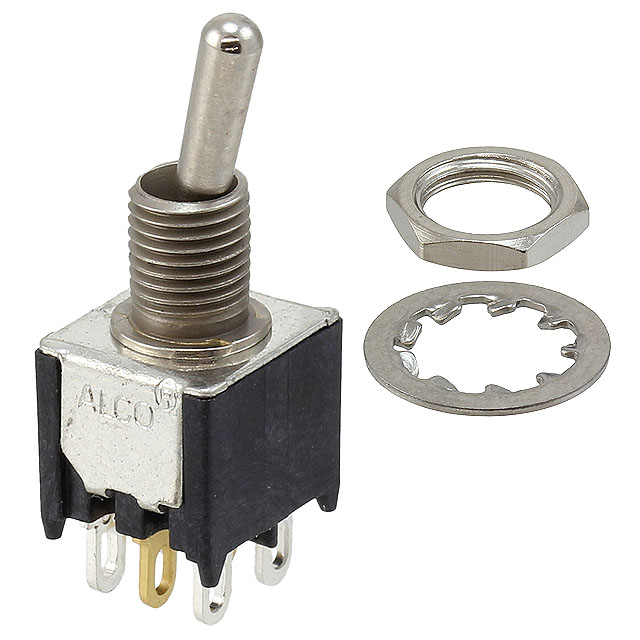

Image may be representation. See specifications for product details.

Product Overview

Part Number:	1825222-7
Manufacturer/Brand:	Agastat Relays / TE Connectivity
Product description	SWITCH TOGGLE DPDT 3A 125
Datasheets:	1.1825222-7.pdf 2.1825222-7.pdf 3.1825222-7.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	7120 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

Download Product Details PDF

In Stock 7120 pcs

Reference Price (In US Dollars)

250 pcs: $4.222

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$4.222

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of 1825222-7

Part Number	1825222-7	Manufacturer	Agastat Relays / TE Connectivity
Description	SWITCH TOGGLE DPDT 3A 125	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	7120 pcs	Data sheet	1.1825222-7.pdf 2.1825222-7.pdf 3.1825222-7.pdf
Voltage Rating - DC	28V	Voltage Rating - AC	125V
Termination Style	Solder Lug	Switch Function	On-On
Series	TT	Panel Cutout Dimensions	Circular - 4.83mm Dia
Packaging	Bulk	Other Names	450-2033 TT23N2T04 TT23N2T04-ND
Operating Temperature	-30°C ~ 85°C	Mounting Type	Panel Mount
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Manufacturer Standard Lead Time	15 Weeks
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Ingress Protection	-
Illumination Voltage (Nominal)	-	Illumination Type, Color	-
Illumination	Non-Illuminated	Features	-
Electrical Life	80,000 Cycles	Detailed Description	Toggle Switch DPDT Panel Mount
Current Rating	3A (AC/DC)	Circuit	DPDT
Bushing Thread	10-48	Actuator Type	Standard Round
Actuator Material	Brass, Nickel Plated	Actuator Length	7.52mm
