1825137-1

Agastat Relays / TE Connectivity

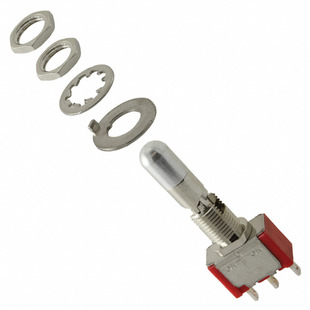

Image may be representation. See specifications for product details.

Product Overview

Part Number:	1825137-1
Manufacturer/Brand:	Agastat Relays / TE Connectivity
Product description	SWITCH TOGGLE SPDT 5A 120V
Datasheets:	1825137-1.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	18143 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

Download Product Details PDF

In Stock 18143 pcs

Reference Price (In US Dollars)

500 pcs: $1.709

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$1.709

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of 1825137-1

Part Number	1825137-1	Manufacturer	Agastat Relays / TE Connectivity
Description	SWITCH TOGGLE SPDT 5A 120V	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	18143 pcs	Data sheet	1825137-1.pdf
Voltage Rating - DC	28V	Voltage Rating - AC	120V
Termination Style	Solder Lug	Switch Function	On-Off-On
Series	Gemini A	Panel Cutout Dimensions	Circular - 6.35mm Dia
Packaging	Bulk	Other Names	1825137-1-ND 18251371 A103KZQ04 A112857
Operating Temperature	-30°C ~ 85°C	Mounting Type	Panel Mount
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Ingress Protection	-	Illumination Voltage (Nominal)	-
Illumination Type, Color	-	Illumination	Non-Illuminated
Features	Epoxy Sealed Terminals	Electrical Life	6,000 Cycles
Detailed Description	Toggle Switch SPDT Panel Mount	Current Rating	5A (AC/DC)
Circuit	SPDT	Bushing Thread	1/4-40
Actuator Type	Locking Lever	Actuator Material	Brass, Nickel Plated
Actuator Length	16.51mm
