1825059-6

Agastat Relays / TE Connectivity

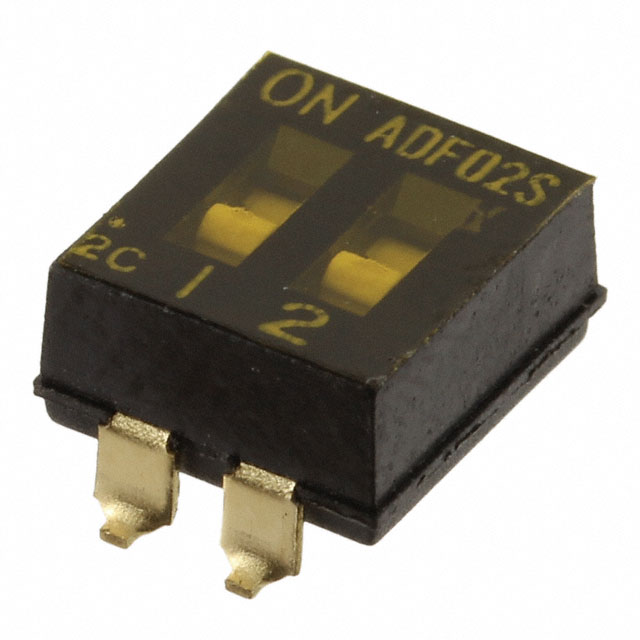

Image may be representation. See specifications for product details.

Product Overview

Part Number:	1825059-6
Manufacturer/Brand:	Agastat Relays / TE Connectivity
Product description	SWITCH SLIDE DIP SPST 100MA 24V
Datasheets:	1.1825059-6.pdf 2.1825059-6.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	96917 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

Download Product Details PDF

In Stock 96917 pcs

Reference Price (In US Dollars)

750 pcs: $0.386

1500 pcs: $0.343

5250 pcs: $0.30

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$0.386

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of 1825059-6

Part Number	1825059-6	Manufacturer	Agastat Relays / TE Connectivity
Description	SWITCH SLIDE DIP SPST 100MA 24V	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	96917 pcs	Data sheet	1.1825059-6.pdf 2.1825059-6.pdf
Washable	Yes	Voltage Rating	24VDC
Termination Style	Gull Wing	Series	ADF
Pitch	0.100" (2.54mm), Full	Packaging	Tape & Reel (TR)
Other Names	1825059-6-ND 18250596 A105447TR ADF02STTR04	Operating Temperature	-30°C ~ 85°C
Number of Positions	2	Mounting Type	Surface Mount
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Mechanical Life	1,000 Cycles
Manufacturer Standard Lead Time	17 Weeks	Length	0.278" (7.06mm)
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Height Above Board	0.177" (4.50mm)
Features	Tape Seal	Electrical Life	1,000 Cycles
Detailed Description	Dip Switch SPST 2 Position Surface Mount Slide (Standard) Actuator 100mA 24VDC	Current Rating	100mA
Contact Material	Copper Alloy	Contact Finish	Gold
Circuit	SPST	Body Material	Polyphenylene Sulfide (PPS)
Actuator Type	Slide (Standard)	Actuator Level	Flush, Recessed
