1775099-8

Agastat Relays / TE Connectivity

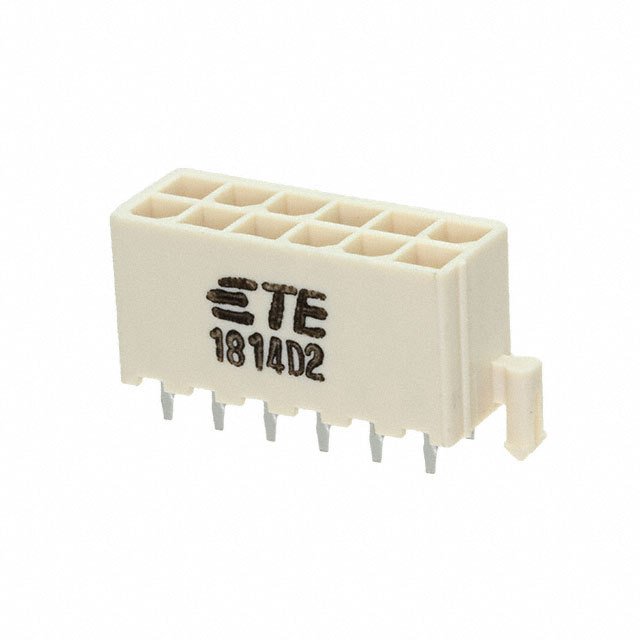

Image may be representation. See specifications for product details.

Product Overview

Part Number:	1775099-8
Manufacturer/Brand:	Agastat Relays / TE Connectivity
Product description	ATX PWR CONN 1 BDLK 12 POS
Datasheets:	1775099-8.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	136803 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 136803 pcs

Reference Price (In US Dollars)

1 pcs: $0.22

10 pcs: $0.208

100 pcs: $0.159

500 pcs: $0.139

1000 pcs: $0.114

5000 pcs: $0.10

10000 pcs: $0.094

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$0.22

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of 1775099-8

Part Number	1775099-8	Manufacturer	Agastat Relays / TE Connectivity
Description	ATX PWR CONN 1 BDLK 12 POS	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	136803 pcs	Data sheet	1775099-8.pdf
Voltage Rating	250VAC	Termination	Solder
Style	-	Series	ATX
Row Spacing - Mating	0.165" (4.20mm)	Pitch - Mating	0.165" (4.20mm)
Packaging	Tray	Other Names	1775099-8-ND A128211
Operating Temperature	-25°C ~ 85°C	Number of Rows	2
Number of Positions Loaded	All	Number of Positions	12
Mounting Type	Through Hole	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Material Flammability Rating	UL94 V-0	Mated Stacking Heights	-
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Insulation Material	Polyamide (PA9T), Nylon 9T
Insulation Height	0.504" (12.80mm)	Insulation Color	Ivory
Ingress Protection	-	Features	Board Lock
Fastening Type	Locking Ramp	Detailed Description	12 Position Receptacle Connector 0.165" (4.20mm) Through Hole Tin
Current Rating	9A	Contact Type	Female Socket
Contact Shape	Square	Contact Material	Brass
Contact Length - Post	0.126" (3.20mm)	Contact Finish Thickness - Post	120.0µin (3.05µm)
Contact Finish Thickness - Mating	120.0µin (3.05µm)	Contact Finish - Post	Tin
Contact Finish - Mating	Tin	Connector Type	Receptacle
Applications	-
