1761609-9

Agastat Relays / TE Connectivity

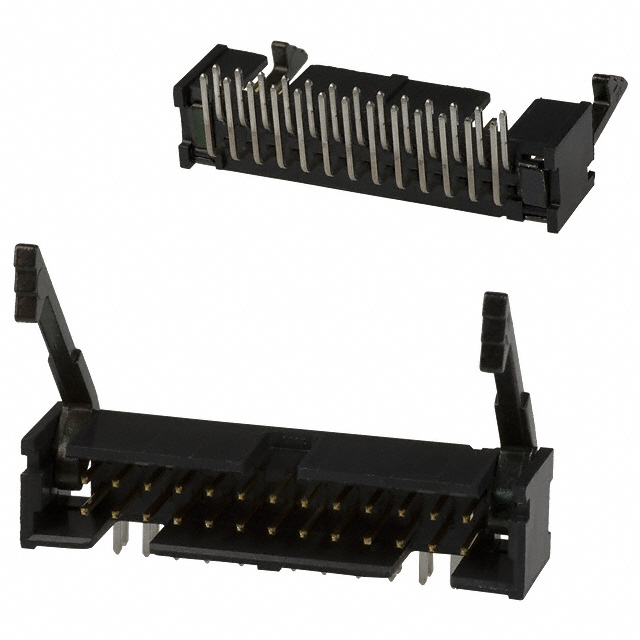

Image may be representation. See specifications for product details.

Product Overview

Part Number:	1761609-9
Manufacturer/Brand:	Agastat Relays / TE Connectivity
Product description	CONN HEADER LOPRO R/A .100 26POS
Datasheets:	1761609-9.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	12412 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 12412 pcs

Reference Price (In US Dollars)

1 pcs: $2.489

13 pcs: $2.385

104 pcs: $1.97

507 pcs: $1.659

1001 pcs: $1.452

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$2.489

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of 1761609-9

Part Number	1761609-9	Manufacturer	Agastat Relays / TE Connectivity
Description	CONN HEADER LOPRO R/A .100 26POS	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	12412 pcs	Data sheet	1761609-9.pdf
Voltage Rating	250VAC	Termination	Solder
Style	Board to Cable/Wire	Shrouding	Shrouded - 4 Wall
Series	AMP-Latch	Row Spacing - Mating	0.100" (2.54mm)
Pitch - Mating	0.100" (2.54mm)	Packaging	Tube
Overall Contact Length	-	Other Names	17616099 A31193
Operating Temperature	-65°C ~ 105°C	Number of Rows	2
Number of Positions Loaded	All	Number of Positions	26
Mounting Type	Through Hole, Right Angle	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Material Flammability Rating	UL94 V-0	Mated Stacking Heights	-
Manufacturer Standard Lead Time	23 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Insulation Material	Polybutylene Terephthalate (PBT)	Insulation Height	0.362" (9.20mm)
Insulation Color	Black	Ingress Protection	-
Features	Keying Slot	Fastening Type	Latch Lock/Eject Hooks, Short
Detailed Description	Connector Header Through Hole, Right Angle 26 position 0.100" (2.54mm)	Current Rating	1A per Contact
Contact Type	Male Pin	Contact Shape	Square
Contact Material	Phosphor Bronze	Contact Length - Post	0.102" (2.60mm)
Contact Length - Mating	0.237" (6.02mm)	Contact Finish Thickness - Post	100.0µin (2.54µm)
Contact Finish Thickness - Mating	30.0µin (0.76µm)	Contact Finish - Post	Tin
Contact Finish - Mating	Gold or Gold-Palladium	Connector Type	Header
Applications	-
