1761607-5

Agastat Relays / TE Connectivity

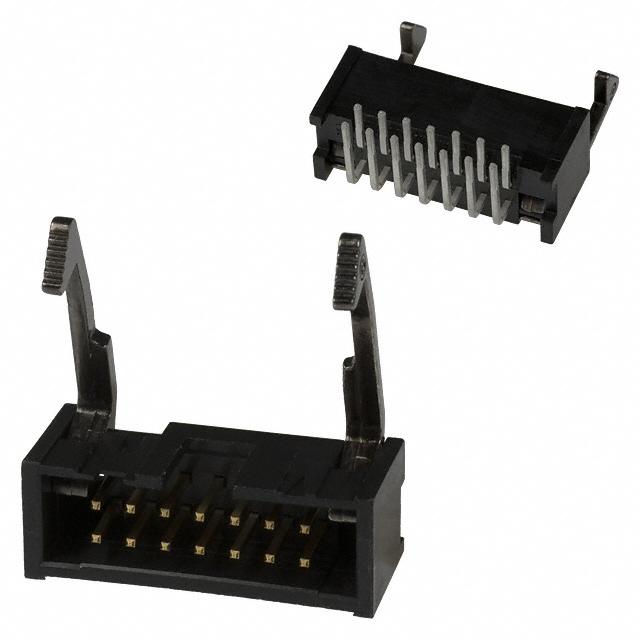

Image may be representation. See specifications for product details.

Product Overview

Part Number:	1761607-5
Manufacturer/Brand:	Agastat Relays / TE Connectivity
Product description	CONN HEADER LOPRO R/A .100 14POS
Datasheets:	1761607-5.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	13700 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 13700 pcs

Reference Price (In US Dollars)

1 pcs: $2.20

20 pcs: $2.108

100 pcs: $1.741

500 pcs: $1.466

1000 pcs: $1.283

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$2.20

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of 1761607-5

Part Number	1761607-5	Manufacturer	Agastat Relays / TE Connectivity
Description	CONN HEADER LOPRO R/A .100 14POS	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	13700 pcs	Data sheet	1761607-5.pdf
Voltage Rating	250VAC	Termination	Solder
Style	Board to Cable/Wire	Shrouding	Shrouded - 4 Wall
Series	AMP-Latch	Row Spacing - Mating	0.100" (2.54mm)
Pitch - Mating	0.100" (2.54mm)	Packaging	Tube
Overall Contact Length	-	Other Names	17616075 A31177
Operating Temperature	-65°C ~ 105°C	Number of Rows	2
Number of Positions Loaded	All	Number of Positions	14
Mounting Type	Through Hole, Right Angle	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Material Flammability Rating	UL94 V-0	Mated Stacking Heights	-
Manufacturer Standard Lead Time	31 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Insulation Material	Polybutylene Terephthalate (PBT)	Insulation Height	0.362" (9.20mm)
Insulation Color	Black	Ingress Protection	-
Features	Keying Slot	Fastening Type	Latch Lock/Eject Hooks, Long
Detailed Description	Connector Header Through Hole, Right Angle 14 position 0.100" (2.54mm)	Current Rating	1A per Contact
Contact Type	Male Pin	Contact Shape	Square
Contact Material	Phosphor Bronze	Contact Length - Post	0.102" (2.60mm)
Contact Length - Mating	0.237" (6.02mm)	Contact Finish Thickness - Post	100.0µin (2.54µm)
Contact Finish Thickness - Mating	30.0µin (0.76µm)	Contact Finish - Post	Tin
Contact Finish - Mating	Gold or Gold-Palladium	Connector Type	Header
Applications	-
