Agastat Relays / TE Connectivity

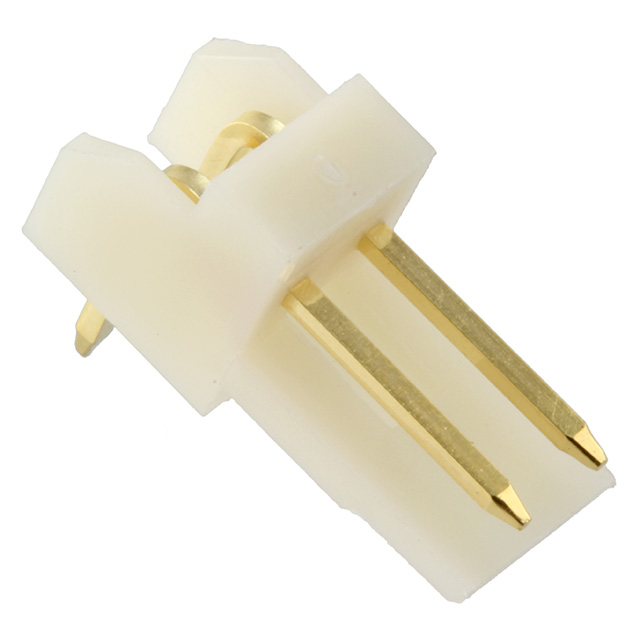

| Part Number | 176153-2 | Manufacturer | Agastat Relays / TE Connectivity |
|---|---|---|---|
| Description | EIS POST HDR ASSY H 2P GOLD | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 200766 pcs | Data sheet | 176153-2.pdf |
| Voltage Rating | 250VAC, 350VDC | Termination | Solder |
| Style | Board to Cable/Wire | Shrouding | Shrouded - 1 Wall |
| Series | EI | Row Spacing - Mating | - |
| Pitch - Mating | 0.098" (2.50mm) | Packaging | Bulk |
| Overall Contact Length | - | Other Names | A116542 |
| Operating Temperature | -20°C ~ 85°C | Number of Rows | 1 |
| Number of Positions Loaded | All | Number of Positions | 2 |
| Mounting Type | Through Hole, Right Angle | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material Flammability Rating | UL94 V-0 | Mated Stacking Heights | - |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Material | Polyamide (PA66), Nylon 6/6 |
| Insulation Height | 0.264" (6.70mm) | Insulation Color | Natural |
| Ingress Protection | - | Features | - |
| Fastening Type | Latch Holder | Detailed Description | Connector Header Through Hole, Right Angle 2 position 0.098" (2.50mm) |
| Current Rating | Varies by Wire Gauge | Contact Type | Male Pin |
| Contact Shape | Square | Contact Material | Brass |
| Contact Length - Post | 0.142" (3.60mm) | Contact Length - Mating | 0.295" (7.49mm) |
| Contact Finish Thickness - Post | - | Contact Finish Thickness - Mating | - |
| Contact Finish - Post | - | Contact Finish - Mating | - |
| Connector Type | Header | Applications | General Purpose |
