Agastat Relays / TE Connectivity

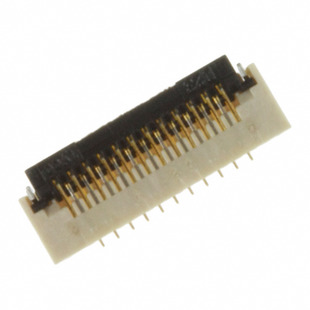

| Part Number | 1746237-7 | Manufacturer | Agastat Relays / TE Connectivity |
|---|---|---|---|
| Description | CONN FPC BOTTOM 23POS 0.30MM R/A | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 4614 pcs | Data sheet | 1746237-7.pdf |
| Voltage Rating | 50V | Termination | Solder |
| Series | - | Pitch | 0.012" (0.30mm) |
| Packaging | Cut Tape (CT) | Other Names | 17462377 A100218CT |
| Operating Temperature | -25°C ~ 85°C | Number of Positions | 23 |
| Mounting Type | Surface Mount, Right Angle | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Mating Cycles | - | Material Flammability Rating | - |
| Locking Feature | Flip Lock | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Housing Material | Thermoplastic | Housing Color | Beige |
| Height Above Board | 0.039" (1.00mm) | Flat Flex Type | FPC |
| Features | Solder Retention, Zero Insertion Force (ZIF) | FFC, FCB Thickness | 0.20mm |
| Detailed Description | 23 Position FPC Connector Contacts, Bottom 0.012" (0.30mm) Surface Mount, Right Angle | Current Rating | 0.2A |
| Contact Material | Copper Alloy | Contact Finish Thickness | - |
| Contact Finish | Gold | Connector/Contact Type | Contacts, Bottom |
| Cable End Type | Tapered | Actuator Material | Thermoplastic |
| Actuator Color | Black |
