1744428-8

Agastat Relays / TE Connectivity

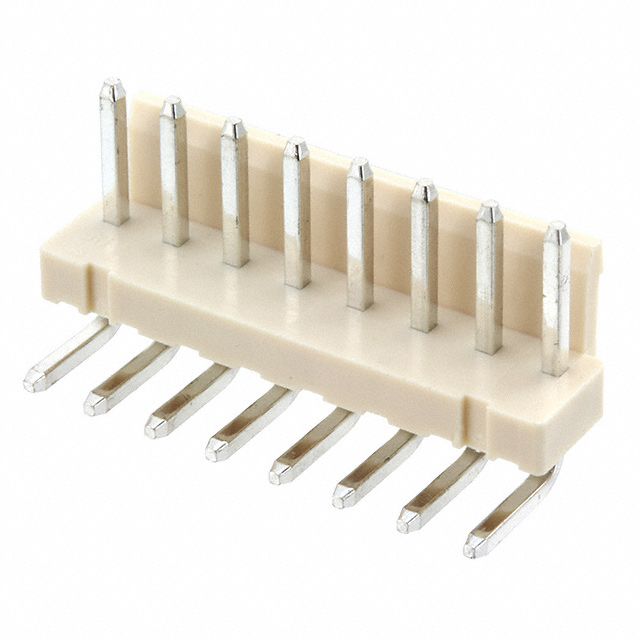

Image may be representation. See specifications for product details.

Product Overview

Part Number:	1744428-8
Manufacturer/Brand:	Agastat Relays / TE Connectivity
Product description	3.96 EP HDR ASSY 8P R/A, GW
Datasheets:	1744428-8.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	125878 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 125878 pcs

Reference Price (In US Dollars)

1 pcs: $0.264

10 pcs: $0.247

100 pcs: $0.189

500 pcs: $0.164

1000 pcs: $0.136

5000 pcs: $0.119

10000 pcs: $0.111

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$0.264

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of 1744428-8

Part Number	1744428-8	Manufacturer	Agastat Relays / TE Connectivity
Description	3.96 EP HDR ASSY 8P R/A, GW	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	125878 pcs	Data sheet	1744428-8.pdf
Voltage Rating	250VAC	Termination	Solder
Style	Board to Cable/Wire	Shrouding	Shrouded - 1 Wall
Series	Economy Power	Row Spacing - Mating	-
Pitch - Mating	0.156" (3.96mm)	Packaging	Bulk
Overall Contact Length	-	Other Names	A116520
Operating Temperature	-25°C ~ 105°C	Number of Rows	1
Number of Positions Loaded	All	Number of Positions	8
Mounting Type	Through Hole, Right Angle	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Material Flammability Rating	UL94 V-0	Mated Stacking Heights	-
Manufacturer Standard Lead Time	16 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Insulation Material	Polyamide (PA), Nylon	Insulation Height	0.339" (8.61mm)
Insulation Color	-	Ingress Protection	-
Features	Glow Wire Compliant	Fastening Type	Friction Lock
Detailed Description	Connector Header Through Hole, Right Angle 8 position 0.156" (3.96mm)	Current Rating	7.5A
Contact Type	Male Pin	Contact Shape	Square
Contact Material	Brass	Contact Length - Post	0.142" (3.60mm)
Contact Length - Mating	0.338" (8.59mm)	Contact Finish Thickness - Post	80.0µin (2.03µm)
Contact Finish Thickness - Mating	80.0µin (2.03µm)	Contact Finish - Post	Tin
Contact Finish - Mating	Tin	Connector Type	Header
Applications	General Purpose, Industrial, Lighting
