1744048-5

Agastat Relays / TE Connectivity

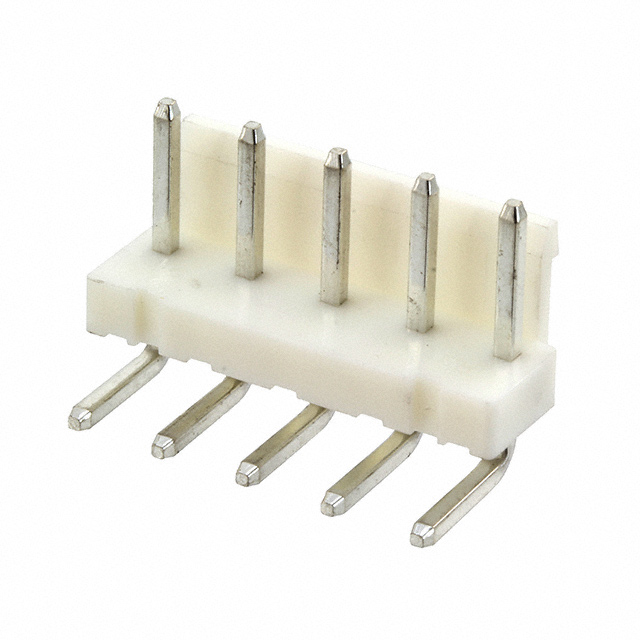

Image may be representation. See specifications for product details.

Product Overview

Part Number:	1744048-5
Manufacturer/Brand:	Agastat Relays / TE Connectivity
Product description	05P EC PWR.200 CL HDR ASSY RA
Datasheets:	1744048-5.pdf
RoHs Status	Contains lead / RoHS Compliant
Stock Condition	198209 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 198209 pcs

Reference Price (In US Dollars)

1 pcs: $0.199

10 pcs: $0.186

100 pcs: $0.142

500 pcs: $0.124

1000 pcs: $0.102

5000 pcs: $0.09

10000 pcs: $0.084

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:
Qty:

Total:$0.199

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of 1744048-5

Part Number	1744048-5	Manufacturer	Agastat Relays / TE Connectivity
Description	05P EC PWR.200 CL HDR ASSY RA	Lead Free Status / RoHS Status	Contains lead / RoHS Compliant
Quantity Available	198209 pcs	Data sheet	1744048-5.pdf
Voltage Rating	250VAC	Termination	Solder
Style	Board to Cable/Wire	Shrouding	Shrouded - 1 Wall
Series	Economy Power	Row Spacing - Mating	-
Pitch - Mating	0.200" (5.08mm)	Packaging	Bulk
Overall Contact Length	-	Other Names	A116469
Operating Temperature	-25°C ~ 105°C	Number of Rows	1
Number of Positions Loaded	All	Number of Positions	5
Mounting Type	Through Hole, Right Angle	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Material Flammability Rating	UL94 V-0	Mated Stacking Heights	-
Manufacturer Standard Lead Time	16 Weeks	Lead Free Status / RoHS Status	Contains lead / RoHS Compliant
Insulation Material	Polyamide (PA66), Nylon 6/6	Insulation Height	0.335" (8.51mm)
Insulation Color	Natural	Ingress Protection	-
Features	-	Fastening Type	Friction Lock
Detailed Description	Connector Header Through Hole, Right Angle 5 position 0.200" (5.08mm)	Current Rating	7.5A
Contact Type	Male Pin	Contact Shape	Square
Contact Material	Copper Alloy	Contact Length - Post	0.142" (3.60mm)
Contact Length - Mating	0.338" (8.59mm)	Contact Finish Thickness - Post	80.0µin (2.03µm)
Contact Finish Thickness - Mating	80.0µin (2.03µm)	Contact Finish - Post	Tin
Contact Finish - Mating	Tin	Connector Type	Header
Applications	General Purpose, Industrial, Lighting
