172023-1

Agastat Relays / TE Connectivity

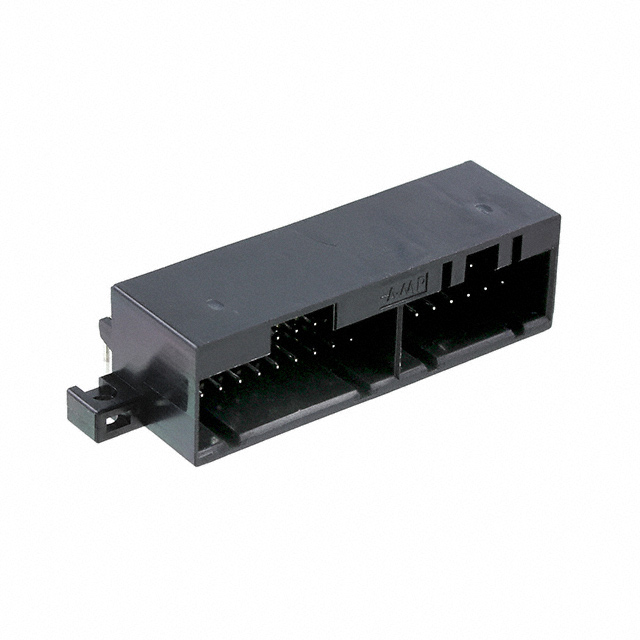

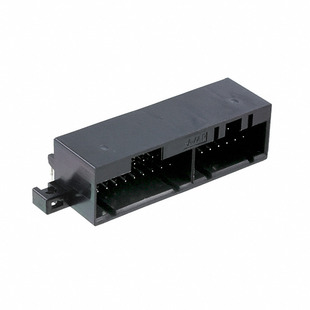

Image may be representation. See specifications for product details.

Product Overview

Part Number:	172023-1
Manufacturer/Brand:	Agastat Relays / TE Connectivity
Product description	CONN RECEPT 36POS R/A TIN .118
Datasheets:	172023-1.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	18942 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 18942 pcs

Reference Price (In US Dollars)

1440 pcs: $1.639

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$1.639

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of 172023-1

Part Number	172023-1	Manufacturer	Agastat Relays / TE Connectivity
Description	CONN RECEPT 36POS R/A TIN .118	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	18942 pcs	Data sheet	172023-1.pdf
Voltage Rating	250VAC, 350VDC	Termination	Solder
Style	Board to Cable/Wire	Shrouding	Shrouded - 4 Wall
Series	DLI (Dual Line Interlock)	Row Spacing - Mating	0.181" (4.60mm)
Pitch - Mating	0.118" (3.00mm)	Packaging	Tray
Overall Contact Length	-	Other Names	172023-1-ND A123102
Operating Temperature	-30°C ~ 105°C	Number of Rows	2
Number of Positions Loaded	All	Number of Positions	36
Mounting Type	Through Hole, Right Angle	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Material Flammability Rating	UL94 V-0	Mated Stacking Heights	-
Manufacturer Standard Lead Time	17 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Insulation Material	Polyamide (PA66), Nylon 6/6	Insulation Height	0.713" (18.10mm)
Insulation Color	Black	Ingress Protection	-
Features	Mounting Flange	Fastening Type	Locking Ramp
Detailed Description	Connector Header Through Hole, Right Angle 36 position 0.118" (3.00mm)	Current Rating	5A
Contact Type	Male Pin	Contact Shape	Rectangular
Contact Material	Copper Alloy	Contact Length - Post	0.157" (4.00mm)
Contact Length - Mating	0.335" (8.51mm)	Contact Finish Thickness - Post	-
Contact Finish Thickness - Mating	-	Contact Finish - Post	Tin
Contact Finish - Mating	Tin	Connector Type	-
Applications	General Purpose
