Agastat Relays / TE Connectivity
| Part Number | 1674000-2 | Manufacturer | Agastat Relays / TE Connectivity |
|---|---|---|---|
| Description | HDR ASSY MINI VP 1.0MM W TO B | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 237124 pcs | Data sheet | 1674000-2.pdf |
| Voltage Rating | 10VAC | Termination | Solder |
| Style | Board to Cable/Wire | Series | Mini VP |
| Row Spacing - Mating | - | Pitch - Mating | 0.039" (1.00mm) |
| Packaging | Tape & Reel (TR) | Other Names | A125733TR |
| Operating Temperature | -40°C ~ 105°C | Number of Rows | 1 |
| Number of Positions Loaded | All | Number of Positions | 8 |
| Mounting Type | Surface Mount, Right Angle | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material Flammability Rating | UL94 V-0 | Mated Stacking Heights | - |
| Manufacturer Standard Lead Time | 4 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insulation Material | Polyamide (PA9T), Nylon 9T | Insulation Height | 0.128" (3.25mm) |
| Insulation Color | Black | Ingress Protection | - |
| Features | - | Fastening Type | Locking Ramp |

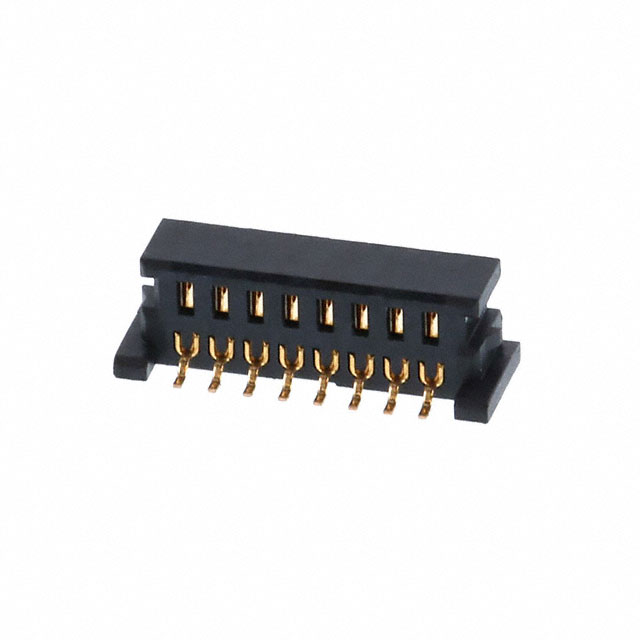

| Detailed Description | 8 Position Header Connector Surface Mount, Right Angle | Current Rating | 1A |
| Contact Type | Female Blade Socket | Contact Shape | Rectangular |
| Contact Material | Phosphor Bronze | Contact Length - Post | - |
| Contact Finish Thickness - Post | - | Contact Finish Thickness - Mating | 8.00µin (0.203µm) |
| Contact Finish - Post | - | Contact Finish - Mating | Gold |
| Connector Type | Header | Applications | - |
