Agastat Relays / TE Connectivity
| Part Number | 1612534-1 | Manufacturer | Agastat Relays / TE Connectivity |
|---|---|---|---|
| Description | CONN HEADER 2POS GOLD SOLDER | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 69015 pcs | Data sheet | 1612534-1.pdf |
| Voltage Rating | 30V | Termination | Solder |
| Style | Board to Cable/Wire | Series | Micro SLP |
| Row Spacing - Mating | - | Pitch - Mating | 0.031" (0.80mm) |
| Packaging | Cut Tape (CT) | Other Names | 16125341 A107908CT |
| Operating Temperature | -25°C ~ 85°C | Number of Rows | 1 |
| Number of Positions Loaded | All | Number of Positions | 2 |
| Mounting Type | Surface Mount | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material Flammability Rating | UL94 V-0 | Mated Stacking Heights | - |
| Manufacturer Standard Lead Time | 13 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insulation Material | Thermoplastic | Insulation Height | 0.057" (1.45mm) |
| Insulation Color | Black | Ingress Protection | - |
| Features | Solder Retention | Fastening Type | Detent Lock |

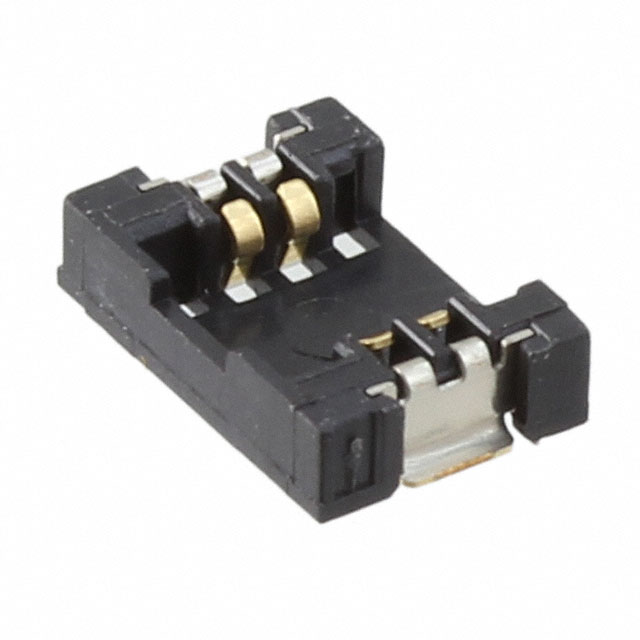

| Detailed Description | 2 Position Receptacle Connector 0.031" (0.80mm) Surface Mount Gold | Current Rating | 0.5A |
| Contact Type | Outer Shroud Contact | Contact Shape | - |
| Contact Material | Phosphor Bronze | Contact Length - Post | - |
| Contact Finish Thickness - Post | 1.97µin (0.050µm) | Contact Finish Thickness - Mating | 12.0µin (0.30µm) |
| Contact Finish - Post | Gold | Contact Finish - Mating | Gold |
| Connector Type | Receptacle | Applications | General Purpose |
