1586863-8

Agastat Relays / TE Connectivity

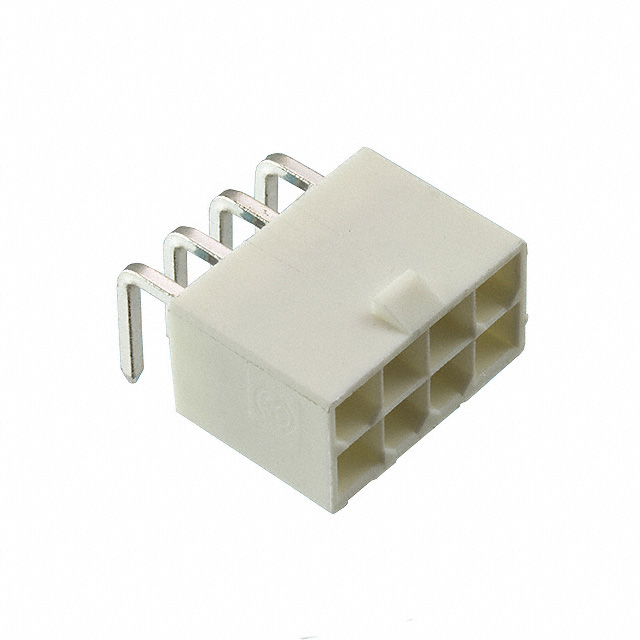

Image may be representation. See specifications for product details.

Product Overview

Part Number:	1586863-8
Manufacturer/Brand:	Agastat Relays / TE Connectivity
Product description	CONN HEADER 8POS R/A DL TIN
Datasheets:	1586863-8.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	76367 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 76367 pcs

Reference Price (In US Dollars)

1 pcs: $0.466

10 pcs: $0.409

210 pcs: $0.353

630 pcs: $0.289

1050 pcs: $0.257

5040 pcs: $0.225

10080 pcs: $0.213

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$0.466

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of 1586863-8

Part Number	1586863-8	Manufacturer	Agastat Relays / TE Connectivity
Description	CONN HEADER 8POS R/A DL TIN	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	76367 pcs	Data sheet	1586863-8.pdf
Voltage Rating	600VAC	Termination	Solder
Style	Board to Cable/Wire	Shrouding	Shrouded - 4 Wall
Series	VAL-U-LOK	Row Spacing - Mating	0.165" (4.20mm)
Pitch - Mating	0.165" (4.20mm)	Packaging	Tray
Overall Contact Length	-	Operating Temperature	-40°C ~ 105°C
Number of Rows	2	Number of Positions Loaded	All
Number of Positions	8	Mounting Type	Through Hole, Right Angle
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Material Flammability Rating	UL94 V-2
Mated Stacking Heights	-	Manufacturer Standard Lead Time	16 Weeks
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Insulation Material	Polyamide (PA), Nylon
Insulation Height	0.402" (10.20mm)	Insulation Color	White
Ingress Protection	-	Features	Glow Wire Compliant
Fastening Type	Locking Ramp	Detailed Description	Connector Header Through Hole, Right Angle 8 position 0.165" (4.20mm)
Current Rating	9A	Contact Type	Male Pin
Contact Shape	Square	Contact Material	Brass
Contact Length - Post	-	Contact Length - Mating	-
Contact Finish Thickness - Post	-	Contact Finish Thickness - Mating	-
Contact Finish - Post	Tin	Contact Finish - Mating	Tin
Connector Type	Header	Applications	General Purpose, Industrial, Lighting
