1586586-6

Agastat Relays / TE Connectivity

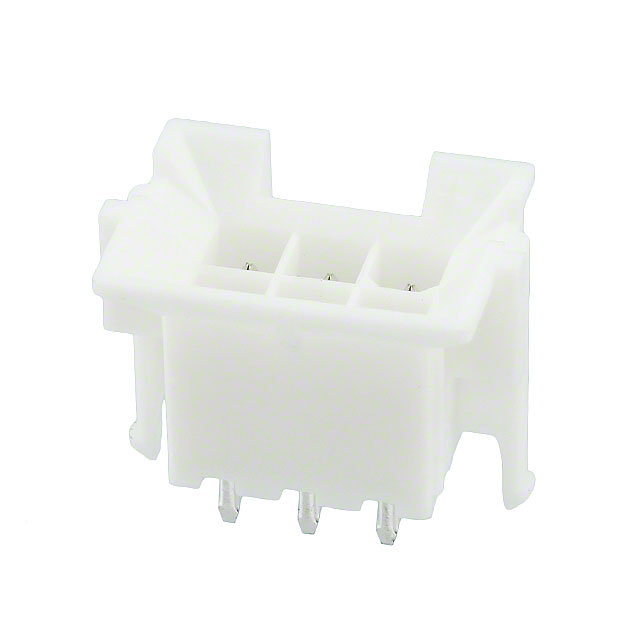

Image may be representation. See specifications for product details.

Product Overview

Part Number:	1586586-6
Manufacturer/Brand:	Agastat Relays / TE Connectivity
Product description	CONN HEADER 6POS VERT DL TIN
Datasheets:	1586586-6.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	128482 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 128482 pcs

Reference Price (In US Dollars)

1 pcs: $0.278

10 pcs: $0.26

180 pcs: $0.20

540 pcs: $0.174

1080 pcs: $0.143

5040 pcs: $0.126

10080 pcs: $0.117

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$0.278

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of 1586586-6

Part Number	1586586-6	Manufacturer	Agastat Relays / TE Connectivity
Description	CONN HEADER 6POS VERT DL TIN	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	128482 pcs	Data sheet	1586586-6.pdf
Voltage Rating	600VAC	Termination	Solder
Style	Board to Cable/Wire	Shrouding	Shrouded - 4 Wall
Series	VAL-U-LOK	Row Spacing - Mating	0.165" (4.20mm)
Pitch - Mating	0.165" (4.20mm)	Packaging	Tray
Overall Contact Length	-	Operating Temperature	-40°C ~ 105°C
Number of Rows	2	Number of Positions Loaded	All
Number of Positions	6	Mounting Type	Through Hole
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Material Flammability Rating	UL94 V-2
Mated Stacking Heights	-	Manufacturer Standard Lead Time	16 Weeks
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Insulation Material	Polyamide (PA), Nylon
Insulation Height	0.555" (14.10mm)	Insulation Color	Natural
Ingress Protection	-	Features	Board Lock
Fastening Type	Latch Holder	Detailed Description	Connector Header Through Hole 6 position 0.165" (4.20mm)
Current Rating	9A	Contact Type	Male Pin
Contact Shape	Square	Contact Material	Brass Alloy
Contact Length - Post	0.138" (3.50mm)	Contact Length - Mating	-
Contact Finish Thickness - Post	39.4µin (1.00µm)	Contact Finish Thickness - Mating	39.4µin (1.00µm)
Contact Finish - Post	Tin	Contact Finish - Mating	Tin
Connector Type	Header	Applications	General Purpose, Industrial, Lighting
