HomeProductsSwitchesDIP Switches1571983-3

1571983-3

Agastat Relays / TE ConnectivityAgastat Relays / TE Connectivity

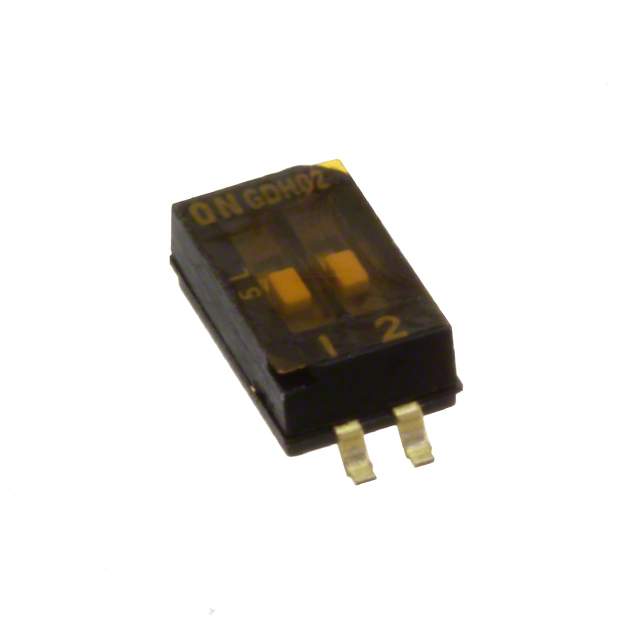

1571983-3 Image
Image may be representation. See specifications for product details.

Product Overview

Part Number: 1571983-3
Manufacturer/Brand: Agastat Relays / TE Connectivity
Product description SWITCH SLIDE DIP SPST 25MA 24V
Datasheets: 1.1571983-3.pdf2.1571983-3.pdf
RoHs Status Lead free / RoHS Compliant
Stock Condition 63897 pcs stock
Ship From Hong Kong
Shipment Way DHL/Fedex/TNT/UPS/EMS
Download Product Details PDF
In Stock 63897 pcs
Reference Price (In US Dollars)
2000 pcs
$0.499
Request Quote
Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]
  • Target Price:(USD)
  • Qty:
Total:$0.499

Please give us your target price if quantities greater than those displayed.

  • Part Number
  • Company Name
  • Contact Name
  • E-mail
  • Message

Specifications of 1571983-3

Part Number 1571983-3 Manufacturer Agastat Relays / TE Connectivity
Description SWITCH SLIDE DIP SPST 25MA 24V Lead Free Status / RoHS Status Lead free / RoHS Compliant
Quantity Available 63897 pcs Data sheet 1.1571983-3.pdf2.1571983-3.pdf
Washable Yes Voltage Rating 24VDC
Termination Style Gull Wing Series GDH
Pitch 0.050" (1.27mm), Half Packaging Tape & Reel (TR)
Other Names 1571983-3-ND
15719833
450-2128-2
GDH02STR04
GDH02STR04-ND		 Operating Temperature -30°C ~ 85°C
Number of Positions 2 Mounting Type Surface Mount
Moisture Sensitivity Level (MSL) 1 (Unlimited) Mechanical Life 1,000 Cycles
Manufacturer Standard Lead Time 4 Weeks Length 0.144" (3.67mm)
Lead Free Status / RoHS Status Lead free / RoHS Compliant Height Above Board 0.091" (2.30mm)
Features Tape Seal Electrical Life 1,000 Cycles
Detailed Description Dip Switch SPST 2 Position Surface Mount Slide (Standard) Actuator 25mA 24VDC Current Rating 25mA
Contact Material Copper Alloy Contact Finish Gold
Circuit SPST Body Material Polyphenylene Sulfide (PPS)
Actuator Type Slide (Standard) Actuator Level Flush, Recessed
