1566230-1

Agastat Relays / TE Connectivity

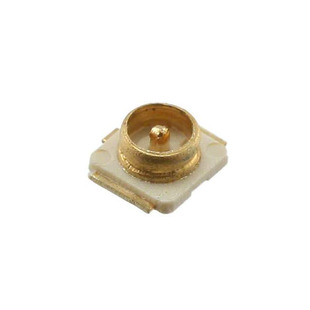

Image may be representation. See specifications for product details.

Product Overview

Part Number:	1566230-1
Manufacturer/Brand:	Agastat Relays / TE Connectivity
Product description	CONN UMC RCPT STR 50 OHM SMD
Datasheets:	1.1566230-1.pdf 2.1566230-1.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	3181 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 3181 pcs

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of 1566230-1

Part Number	1566230-1	Manufacturer	Agastat Relays / TE Connectivity
Description	CONN UMC RCPT STR 50 OHM SMD	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	3181 pcs	Data sheet	1.1566230-1.pdf 2.1566230-1.pdf
Voltage Rating	60V	Shield Termination	Solder
Series	-	Packaging	Tape & Reel (TR)
Other Names	1566230-1-ND A36237TR	Operating Temperature	-40°C ~ 90°C
Number of Ports	1	Mounting Type	Surface Mount
Mounting Feature	-	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Mating Cycles	30	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Insertion Loss	0.24dB	Ingress Protection	-
Includes	-	Impedance	50 Ohm
Housing Color	-	Frequency - Max	6GHz
Features	-	Fastening Type	Snap-On
Dielectric Material	Liquid Crystal Polymer (LCP)	Detailed Description	Ultra Miniature Coaxial Connector Receptacle, Male Pin 50 Ohm Surface Mount Solder
Contact Termination	Solder	Connector Type	Receptacle, Male Pin
Connector Style	Ultra Miniature Coaxial	Center Contact Plating	Gold
Center Contact Material	-	Cable Group	-
Body Material	Phosphor Bronze	Body Finish	-
