1520204-1

Agastat Relays / TE Connectivity

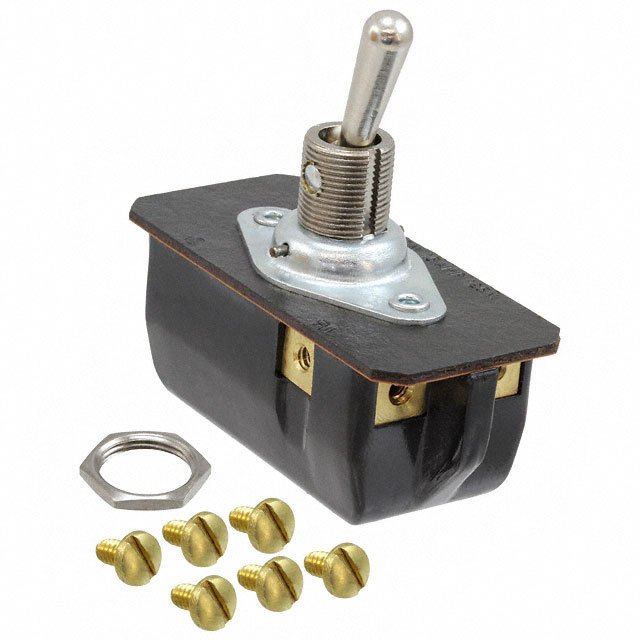

Image may be representation. See specifications for product details.

Product Overview

Part Number:	1520204-1
Manufacturer/Brand:	Agastat Relays / TE Connectivity
Product description	SWITCH TOGGLE DPDT 15A 125V
Datasheets:	1520204-1.pdf
RoHs Status	Contains lead / RoHS non-compliant
Stock Condition	1407 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

Download Product Details PDF

In Stock 1407 pcs

Reference Price (In US Dollars)

1 pcs: $24.781

10 pcs: $23.322

25 pcs: $21.865

50 pcs: $20.407

100 pcs: $19.678

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$24.781

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of 1520204-1

Part Number	1520204-1	Manufacturer	Agastat Relays / TE Connectivity
Description	SWITCH TOGGLE DPDT 15A 125V	Lead Free Status / RoHS Status	Contains lead / RoHS non-compliant
Quantity Available	1407 pcs	Data sheet	1520204-1.pdf
Voltage Rating - AC	125V	Termination Style	Screw Terminal
Switch Function	On-On	Series	-
Panel Cutout Dimensions	-	Packaging	Bulk
Other Names	0-1520204-1 1520204-1-ND 15202041 450-1819 8690K2 8690K2-ND	Operating Temperature	-
Mounting Type	Panel Mount	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Lead Free Status / RoHS Status	Contains lead / RoHS non-compliant	Ingress Protection	-
Illumination Voltage (Nominal)	-	Illumination Type, Color	-
Illumination	Non-Illuminated	Features	-
Electrical Life	-	Detailed Description	Toggle Switch DPDT Panel Mount
Current Rating	15A (AC)	Circuit	DPDT
Bushing Thread	15/32-32	Actuator Type	Standard Round
Actuator Material	-	Actuator Length	20.65mm
