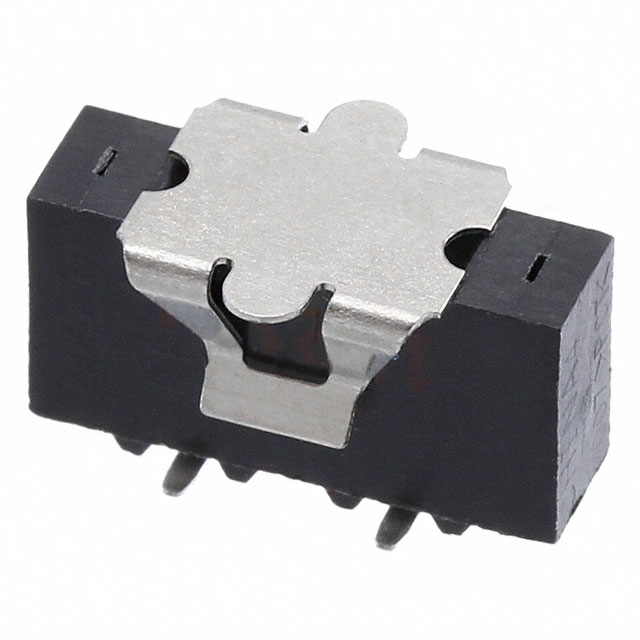

Agastat Relays / TE Connectivity
| Part Number | 147730-1 | Manufacturer | Agastat Relays / TE Connectivity |
|---|---|---|---|
| Description | 03 MODIV VRT SR SFMNT 10AU | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 141445 pcs | Data sheet | 147730-1.pdf |
| Voltage Rating | - | Termination | Solder |
| Style | Board to Board or Cable | Series | AMPMODU Mod IV |
| Row Spacing - Mating | - | Pitch - Mating | 0.100" (2.54mm) |
| Packaging | Tape & Reel (TR) | Operating Temperature | -65°C ~ 125°C |
| Number of Rows | 1 | Number of Positions Loaded | All |
| Number of Positions | 3 | Mounting Type | Surface Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | - |
| Mated Stacking Heights | - | Manufacturer Standard Lead Time | 11 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Material | Polyester, Glass Filled |
| Insulation Height | 0.265" (6.73mm) | Insulation Color | Black |
| Ingress Protection | - | Features | Board Lock, Pick and Place |
| Fastening Type | Push-Pull | Detailed Description | 3 Position Receptacle, Bottom or Top Entry Connector 0.100" (2.54mm) Surface Mount Gold |
| Current Rating | 2A | Contact Type | Female Socket |
| Contact Shape | Square | Contact Material | Phosphor Bronze |
| Contact Length - Post | - | Contact Finish Thickness - Post | 150.0µin (3.81µm) |
| Contact Finish Thickness - Mating | 10.0µin (0.25µm) | Contact Finish - Post | Tin-Lead |
| Contact Finish - Mating | Gold | Connector Type | Receptacle, Bottom or Top Entry |
| Applications | - |
