147381-5

Agastat Relays / TE Connectivity

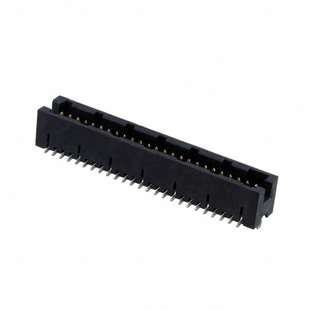

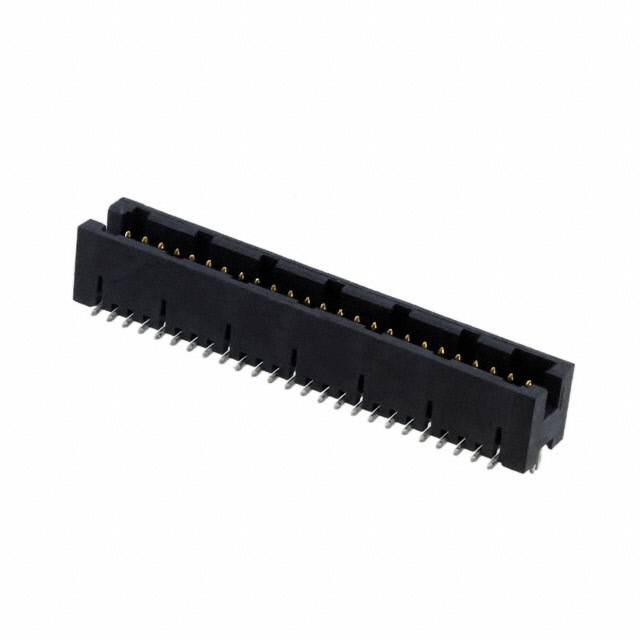

Image may be representation. See specifications for product details.

Product Overview

Part Number:	147381-5
Manufacturer/Brand:	Agastat Relays / TE Connectivity
Product description	CONN HEADER 50POS VERT .050 SMD
Datasheets:	147381-5.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	15640 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 15640 pcs

Reference Price (In US Dollars)

950 pcs: $1.964

1900 pcs: $1.802

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:
Qty:

Total:$1.964

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of 147381-5

Part Number	147381-5	Manufacturer	Agastat Relays / TE Connectivity
Description	CONN HEADER 50POS VERT .050 SMD	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	15640 pcs	Data sheet	147381-5.pdf
Voltage Rating	-	Termination	Solder
Style	Board to Board	Shrouding	Shrouded - 4 Wall
Series	AMPMODU 50/50 Grid	Row Spacing - Mating	0.050" (1.27mm)
Pitch - Mating	0.050" (1.27mm)	Packaging	Tape & Reel (TR)
Overall Contact Length	-	Other Names	A108810TR
Operating Temperature	-65°C ~ 105°C	Number of Rows	2
Number of Positions Loaded	All	Number of Positions	50
Mounting Type	Surface Mount	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Material Flammability Rating	UL94 V-0	Mated Stacking Heights	6.35mm
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Insulation Material	Liquid Crystal Polymer (LCP)
Insulation Height	0.226" (5.74mm)	Insulation Color	Black
Ingress Protection	-	Features	Board Lock, Pick and Place
Fastening Type	Push-Pull	Detailed Description	Connector Header Surface Mount 50 position 0.050" (1.27mm)
Current Rating	0.5A per Contact	Contact Type	Male Pin
Contact Shape	Circular	Contact Material	Phosphor Bronze
Contact Length - Post	-	Contact Length - Mating	0.120" (3.05mm)
Contact Finish Thickness - Post	150.0µin (3.81µm)	Contact Finish Thickness - Mating	30.0µin (0.76µm)
Contact Finish - Post	Tin-Lead	Contact Finish - Mating	Gold
Connector Type	Header	Applications	Automotive, General Purpose, Medical, Military, Telecommunications
