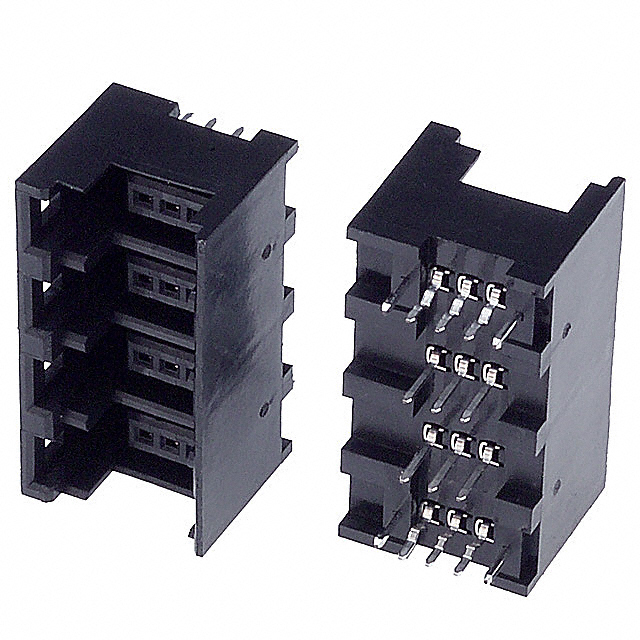

Agastat Relays / TE Connectivity
| Part Number | 1473567-3 | Manufacturer | Agastat Relays / TE Connectivity |
|---|---|---|---|
| Description | CONN HEADER 3POS 4ROW VERT PCB | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 11709 pcs | Data sheet | 1473567-3.pdf |
| Voltage Rating | 32VDC | Termination | Press-Fit, Solder |
| Style | Board to Cable/Wire | Series | RITS |
| Row Spacing - Mating | 0.256" (6.50mm) | Pitch - Mating | 0.079" (2.00mm) |
| Packaging | Bulk | Other Names | 14735673 A29173 |
| Operating Temperature | -30°C ~ 75°C | Number of Rows | 4 |
| Number of Positions Loaded | All | Number of Positions | 12 |
| Mounting Type | Through Hole | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material Flammability Rating | UL94 V-0 | Mated Stacking Heights | - |
| Manufacturer Standard Lead Time | 18 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insulation Material | Thermoplastic, Glass Filled | Insulation Height | 0.512" (13.00mm) |
| Insulation Color | Black | Ingress Protection | - |
| Features | - | Fastening Type | Latch Holder |
| Detailed Description | 12 Position Header Connector 0.079" (2.00mm) Through Hole Gold | Current Rating | - |
| Contact Type | Female Socket | Contact Shape | Square |
| Contact Material | Copper Alloy | Contact Length - Post | 0.130" (3.30mm) |
| Contact Finish Thickness - Post | 78.7µin (2.00µm) | Contact Finish Thickness - Mating | 8.00µin (0.203µm) |
| Contact Finish - Post | Tin | Contact Finish - Mating | Gold |
| Connector Type | Header | Applications | - |
