Agastat Relays / TE Connectivity

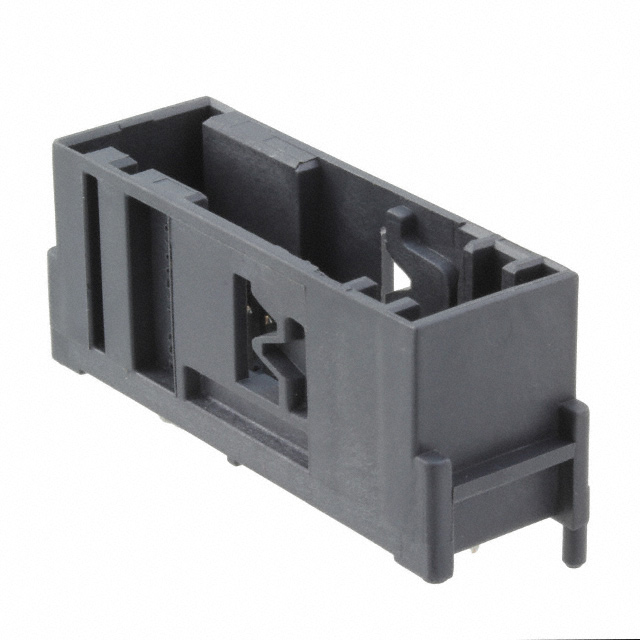

| Part Number | 1452368-1 | Manufacturer | Agastat Relays / TE Connectivity |
|---|---|---|---|
| Description | CONN HDR PLUG 32POS PCB TAB | Lead Free Status / RoHS Status | Contains lead / RoHS Compliant |
| Quantity Available | 19739 pcs | Data sheet | 1452368-1.pdf |
| Voltage Rating | - | Termination | Solder |
| Style | Board to Board or Cable | Shrouding | Shrouded - 4 Wall |
| Series | AMPMODU Mod II | Row Spacing - Mating | 0.100" (2.54mm) |
| Pitch - Mating | 0.100" (2.54mm) | Packaging | Tube |
| Overall Contact Length | - | Other Names | A107817 |
| Operating Temperature | - | Number of Rows | 2 |
| Number of Positions Loaded | All | Number of Positions | 32 |
| Mounting Type | Through Hole | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material Flammability Rating | - | Mated Stacking Heights | - |
| Lead Free Status / RoHS Status | Contains lead / RoHS Compliant | Insulation Material | Polyethylene Terephthalate (PET), Glass Filled |
| Insulation Height | 0.795" (20.20mm) | Insulation Color | Gray |
| Ingress Protection | - | Features | Board Guide |
| Fastening Type | Lever Lock | Detailed Description | Connector Header Through Hole 32 position 0.100" (2.54mm) |
| Current Rating | - | Contact Type | Tab |
| Contact Shape | Square | Contact Material | Copper Alloy |
| Contact Length - Post | 0.110" (2.79mm) | Contact Length - Mating | - |
| Contact Finish Thickness - Post | - | Contact Finish Thickness - Mating | - |
| Contact Finish - Post | Tin | Contact Finish - Mating | Tin |
| Connector Type | Header | Applications | - |
