1393277-8

Agastat Relays / TE Connectivity

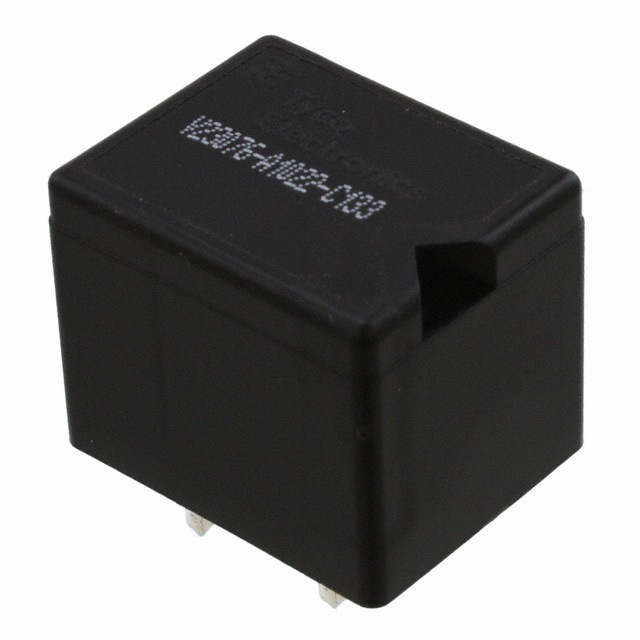

Image may be representation. See specifications for product details.

Product Overview

Part Number:	1393277-8
Manufacturer/Brand:	Agastat Relays / TE Connectivity
Product description	RELAY AUTOMOTIVE SPDT 45A 24V
Datasheets:	1393277-8.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	29077 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

Download Product Details PDF

In Stock 29077 pcs

Reference Price (In US Dollars)

1 pcs: $1.326

10 pcs: $1.242

25 pcs: $1.104

50 pcs: $1.049

100 pcs: $0.994

250 pcs: $0.918

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$1.326

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of 1393277-8

Part Number	1393277-8	Manufacturer	Agastat Relays / TE Connectivity
Description	RELAY AUTOMOTIVE SPDT 45A 24V	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	29077 pcs	Data sheet	1393277-8.pdf
Turn On Voltage (Max)	14.1 VDC	Turn Off Voltage (Min)	2.4 VDC
Termination Style	PC Pin	Switching Voltage	12VDC - Nom
Series	V23076	Release Time	3ms
Packaging	Bulk	Other Names	13932778 PB1320 V23076A1022C133
Operating Temperature	-40°C ~ 85°C	Operate Time	5ms
Mounting Type	Through Hole	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Manufacturer Standard Lead Time	28 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Features	Sealed	Contact Rating (Current)	45A
Contact Material	Silver Nickel (AgNi)	Contact Form	SPDT (1 Form C)
Coil Voltage	24VDC	Coil Type	Non Latching
Coil Resistance	362 Ohms	Coil Power	1.6 W
Coil Current	66.0mA
