1355505-1

Agastat Relays / TE Connectivity

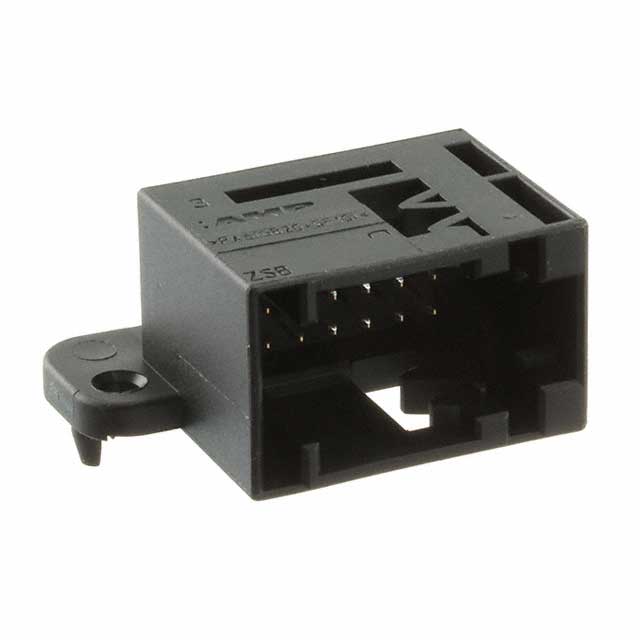

Image may be representation. See specifications for product details.

Product Overview

Part Number:	1355505-1
Manufacturer/Brand:	Agastat Relays / TE Connectivity
Product description	CONN HEADER 12POS R/A TIN .100
Datasheets:	1355505-1.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	21593 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 21593 pcs

Reference Price (In US Dollars)

1 pcs: $1.506

10 pcs: $1.447

100 pcs: $1.206

500 pcs: $1.025

1000 pcs: $0.874

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$1.506

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of 1355505-1

Part Number	1355505-1	Manufacturer	Agastat Relays / TE Connectivity
Description	CONN HEADER 12POS R/A TIN .100	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	21593 pcs	Data sheet	1355505-1.pdf
Voltage Rating	-	Termination	Solder
Style	Board to Cable/Wire	Shrouding	Shrouded - 4 Wall
Series	Micro Quadlok	Row Spacing - Mating	0.100" (2.54mm)
Pitch - Mating	0.100" (2.54mm)	Packaging	Bulk
Overall Contact Length	-	Other Names	1355505-1-ND A122532
Operating Temperature	-40°C ~ 85°C	Number of Rows	2
Number of Positions Loaded	All	Number of Positions	12
Mounting Type	Through Hole, Right Angle	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Material Flammability Rating	-	Mated Stacking Heights	-
Manufacturer Standard Lead Time	17 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Insulation Material	Polyamide (PA66), Nylon 6/6, Glass Filled	Insulation Height	0.626" (15.90mm)
Insulation Color	Black	Ingress Protection	-
Features	Board Lock, Mounting Flange	Fastening Type	Friction Lock
Detailed Description	Connector Header Through Hole, Right Angle 12 position 0.100" (2.54mm)	Current Rating	-
Contact Type	Male Pin	Contact Shape	Square
Contact Material	Copper Alloy	Contact Length - Post	0.110" (2.79mm)
Contact Length - Mating	-	Contact Finish Thickness - Post	-
Contact Finish Thickness - Mating	78.7µin (2.00µm)	Contact Finish - Post	Tin
Contact Finish - Mating	Tin	Connector Type	Header
Applications	Automotive
