Agastat Relays / TE Connectivity
| Part Number | 1330723-1 | Manufacturer | Agastat Relays / TE Connectivity |
|---|---|---|---|

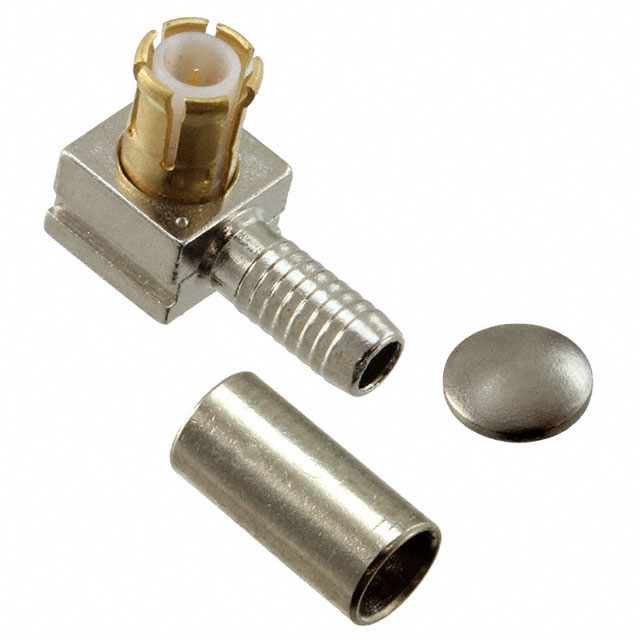

| Description | CONN MCX PLUG R/A 50OHM SOLDER | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 3591 pcs | Data sheet | 1330723-1.pdf |
| Voltage Rating | 335V | Shield Termination | Crimp |
| Series | - | Packaging | Bulk |
| Other Names | 1330723-1-ND 5837-5025-10 A112039 |
Operating Temperature | -65°C ~ 165°C |
| Number of Ports | 1 | Mounting Type | Free Hanging (In-Line), Right Angle |
| Mounting Feature | - | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Mating Cycles | 500 | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insertion Loss | 0.1dB | Ingress Protection | - |
| Includes | 3 pcs - 1 Connector, 1 End Cap, 1 Ferrule | Impedance | 50 Ohm |
| Housing Color | Silver | Frequency - Max | 6GHz |
| Features | - | Fastening Type | Snap-On |
| Dielectric Material | Polytetrafluoroethylene (PTFE) | Detailed Description | MCX Connector Plug, Male Pin 50 Ohm Free Hanging (In-Line), Right Angle Solder |
| Contact Termination | Solder | Connector Type | Plug, Male Pin |
| Connector Style | MCX | Center Contact Plating | Gold |
| Center Contact Material | Beryllium Copper | Cable Group | RG-174, 188, 316 |
| Body Material | - | Body Finish | Nickel |
