1318745-2

Agastat Relays / TE Connectivity

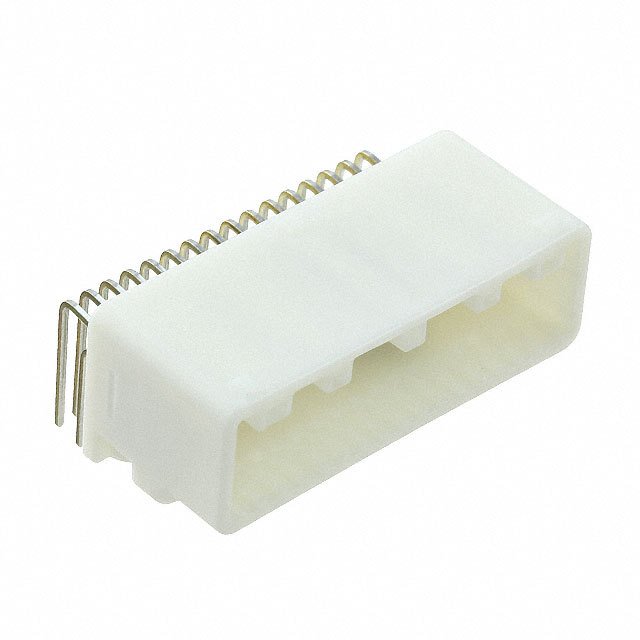

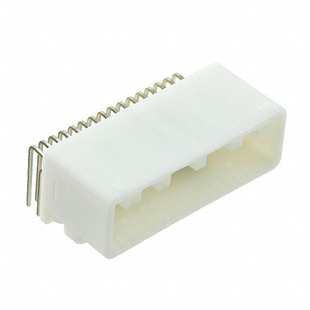

Image may be representation. See specifications for product details.

Product Overview

Part Number:	1318745-2
Manufacturer/Brand:	Agastat Relays / TE Connectivity
Product description	CONN RECEPT 32POS R/A TIN 2.2MM
Datasheets:	1318745-2.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	16495 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 16495 pcs

Reference Price (In US Dollars)

1 pcs: $2.142

11 pcs: $2.055

110 pcs: $1.712

506 pcs: $1.455

1001 pcs: $1.241

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$2.142

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of 1318745-2

Part Number	1318745-2	Manufacturer	Agastat Relays / TE Connectivity
Description	CONN RECEPT 32POS R/A TIN 2.2MM	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	16495 pcs	Data sheet	1318745-2.pdf
Voltage Rating	12VDC	Termination	Solder
Style	Board to Cable/Wire	Shrouding	Shrouded - 4 Wall
Series	-	Row Spacing - Mating	0.118" (3.00mm)
Pitch - Mating	0.087" (2.20mm)	Packaging	Tube
Overall Contact Length	-	Other Names	1318745-2-ND A126047
Operating Temperature	-30°C ~ 105°C	Number of Rows	2
Number of Positions Loaded	All	Number of Positions	32
Mounting Type	Through Hole, Right Angle	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Material Flammability Rating	UL94 HB	Mated Stacking Heights	-
Manufacturer Standard Lead Time	19 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Insulation Material	Polybutylene Terephthalate (PBT), Glass Filled	Insulation Height	0.610" (15.49mm)
Insulation Color	Natural	Ingress Protection	-
Features	Mounting Flange	Fastening Type	Latch Holder
Detailed Description	Connector Header Through Hole, Right Angle 32 position 0.087" (2.20mm)	Current Rating	-
Contact Type	Male Pin	Contact Shape	Square
Contact Material	Brass	Contact Length - Post	0.157" (4.00mm)
Contact Length - Mating	0.217" (5.50mm)	Contact Finish Thickness - Post	-
Contact Finish Thickness - Mating	-	Contact Finish - Post	Tin
Contact Finish - Mating	Tin	Connector Type	Header
Applications	Automotive
