130522

Agastat Relays / TE Connectivity

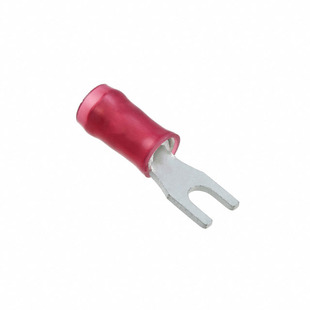

Image may be representation. See specifications for product details.

Product Overview

Part Number:	130522
Manufacturer/Brand:	Agastat Relays / TE Connectivity
Product description	CONN SPADE TERM 16-22AWG M2.5
Datasheets:	130522.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	212039 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 212039 pcs

Reference Price (In US Dollars)

1 pcs: $0.148

10 pcs: $0.139

25 pcs: $0.119

50 pcs: $0.101

100 pcs: $0.097

250 pcs: $0.087

500 pcs: $0.083

1000 pcs: $0.069

2500 pcs: $0.063

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$0.148

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of 130522

Part Number	130522	Manufacturer	Agastat Relays / TE Connectivity
Description	CONN SPADE TERM 16-22AWG M2.5	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	212039 pcs	Data sheet	130522.pdf
Wire Gauge	16-22 AWG	Width - Outer Edges	0.217" (5.50mm)
Tongue Inside Opening	-	Termination	Crimp
Terminal Type	Standard	Stud/Tab Size	M2.5 Stud
Series	PIDG	Packaging	Bulk
Other Names	130522-ND A122528	Mounting Type	Free Hanging (In-Line)
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Material - Insulation	Polyamide (PA), Nylon
Manufacturer Standard Lead Time	17 Weeks	Length - Termination	0.413" (10.50mm)
Length - Ring Center to Termination	0.252" (6.40mm)	Length - Overall	0.772" (19.61mm)
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Insulation Diameter	0.146" (3.71mm)
Insulation	Insulated	Features	-
Detailed Description	Red M2.5 Stud Spade Terminal Connector Crimp 16-22 AWG	Contact Material	Copper
Contact Finish	Tin	Color	Red
