111825-7

Agastat Relays / TE Connectivity

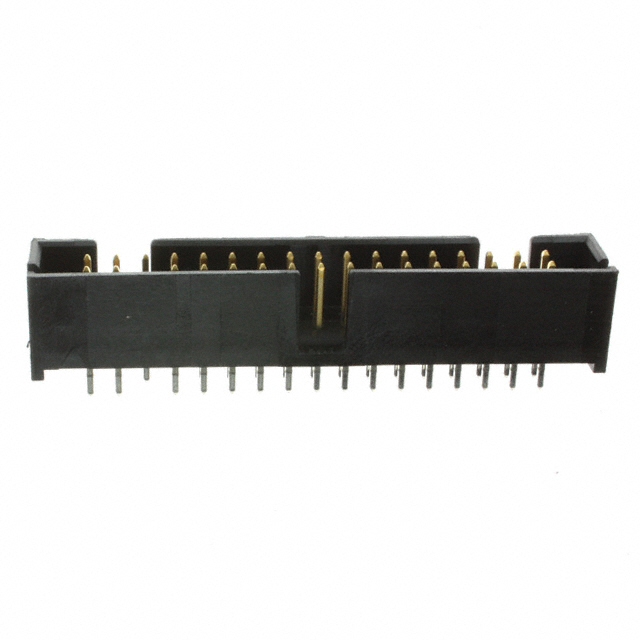

Image may be representation. See specifications for product details.

Product Overview

Part Number:	111825-7
Manufacturer/Brand:	Agastat Relays / TE Connectivity
Product description	CONN HDR VERT 34POS .100 LOW PCB
Datasheets:	111825-7.pdf
RoHs Status	Contains lead / RoHS non-compliant
Stock Condition	51674 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 51674 pcs

Reference Price (In US Dollars)

1 pcs: $0.708

10 pcs: $0.643

100 pcs: $0.551

500 pcs: $0.459

1000 pcs: $0.394

5000 pcs: $0.349

10000 pcs: $0.341

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$0.708

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of 111825-7

Part Number	111825-7	Manufacturer	Agastat Relays / TE Connectivity
Description	CONN HDR VERT 34POS .100 LOW PCB	Lead Free Status / RoHS Status	Contains lead / RoHS non-compliant
Quantity Available	51674 pcs	Data sheet	111825-7.pdf
Voltage Rating	250VAC	Termination	Solder
Style	Board to Cable/Wire	Shrouding	Shrouded - 4 Wall
Series	AMP-Latch	Row Spacing - Mating	0.100" (2.54mm)
Pitch - Mating	0.100" (2.54mm)	Packaging	Bulk
Overall Contact Length	-	Other Names	1118257
Operating Temperature	-65°C ~ 105°C	Number of Rows	2
Number of Positions Loaded	33	Number of Positions	34
Mounting Type	Through Hole	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Material Flammability Rating	UL94 V-0	Mated Stacking Heights	-
Lead Free Status / RoHS Status	Contains lead / RoHS non-compliant	Insulation Material	-
Insulation Height	0.388" (9.86mm)	Insulation Color	Black
Ingress Protection	-	Features	Keying Slot
Fastening Type	Push-Pull	Detailed Description	Connector Header Through Hole 34 position 0.100" (2.54mm)
Current Rating	1A per Contact	Contact Type	Male Pin
Contact Shape	Square	Contact Material	Brass
Contact Length - Post	0.120" (3.05mm)	Contact Length - Mating	0.240" (6.10mm)
Contact Finish Thickness - Post	100.0µin (2.54µm)	Contact Finish Thickness - Mating	15.0µin (0.38µm)
Contact Finish - Post	Tin-Lead	Contact Finish - Mating	Gold or Gold-Palladium
Connector Type	Header	Applications	-
