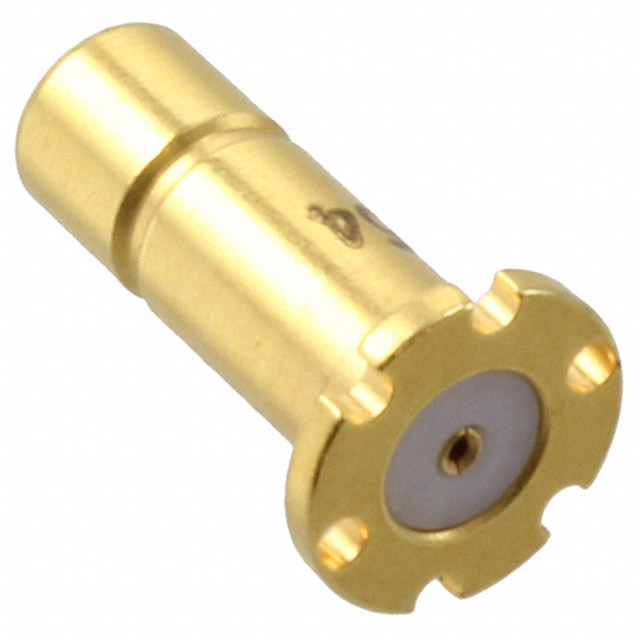

Agastat Relays / TE Connectivity
| Part Number | 1080440-1 | Manufacturer | Agastat Relays / TE Connectivity |
|---|---|---|---|
| Description | CONN SMB RCPT STR 50 OHM SMD | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 3664 pcs | Data sheet | 1080440-1.pdf |
| Voltage Rating | 335V | Shield Termination | Screw |
| Series | - | Packaging | Bulk |
| Other Names | 1080440-1-ND 5166-5006-09 A111774 |
Operating Temperature | -65°C ~ 165°C |
| Number of Ports | 1 | Mounting Type | Surface Mount |
| Mounting Feature | Flange | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Mating Cycles | 500 | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insertion Loss | 0.3dB | Ingress Protection | - |
| Includes | - | Impedance | 50 Ohm |
| Housing Color | Gold | Frequency - Max | 4GHz |
| Features | Field Replaceable, For Hermetically Sealed Pin | Fastening Type | Snap-On |
| Dielectric Material | Polytetrafluoroethylene (PTFE) | Detailed Description | SMB Connector Receptacle, Male Pin 50 Ohm Surface Mount Compression |
| Contact Termination | Compression | Connector Type | Receptacle, Male Pin |
| Connector Style | SMB | Center Contact Plating | Gold |
| Center Contact Material | Beryllium Copper | Cable Group | - |
| Body Material | Brass | Body Finish | Gold |
