1059684-1

Agastat Relays / TE Connectivity

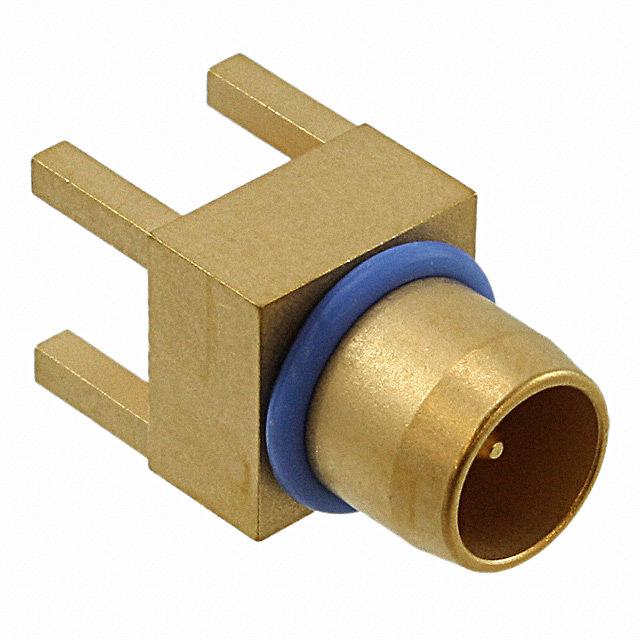

Image may be representation. See specifications for product details.

Product Overview

Part Number:	1059684-1
Manufacturer/Brand:	Agastat Relays / TE Connectivity
Product description	CONN MINI OSP PLUG STR 50OHM PCB
Datasheets:	1059684-1.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	2974 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 2974 pcs

Reference Price (In US Dollars)

1 pcs: $12.752

10 pcs: $11.511

25 pcs: $11.028

50 pcs: $10.339

100 pcs: $9.994

250 pcs: $9.443

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$12.752

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of 1059684-1

Part Number	1059684-1	Manufacturer	Agastat Relays / TE Connectivity
Description	CONN MINI OSP PLUG STR 50OHM PCB	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	2974 pcs	Data sheet	1059684-1.pdf
Voltage Rating	500V	Shield Termination	Solder
Series	Blindmate	Packaging	Bulk
Other Names	10596841 4563 0000 00	Operating Temperature	-65°C ~ 125°C
Number of Ports	1	Mounting Type	Through Hole
Mounting Feature	-	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Mating Cycles	5000	Manufacturer Standard Lead Time	7 Weeks
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Insertion Loss	-
Ingress Protection	-	Includes	-
Impedance	50 Ohm	Housing Color	Gold
Frequency - Max	18GHz	Features	-
Fastening Type	Snap-On	Dielectric Material	Polytetrafluoroethylene (PTFE)
Detailed Description	OSP, Mini Connector Plug, Male Pin 50 Ohm Through Hole Solder	Contact Termination	Solder
Connector Type	Plug, Male Pin	Connector Style	OSP, Mini
Center Contact Plating	Gold	Center Contact Material	Beryllium Copper
Cable Group	-	Body Material	Stainless Steel
Body Finish	Gold
