104666-1

Agastat Relays / TE Connectivity

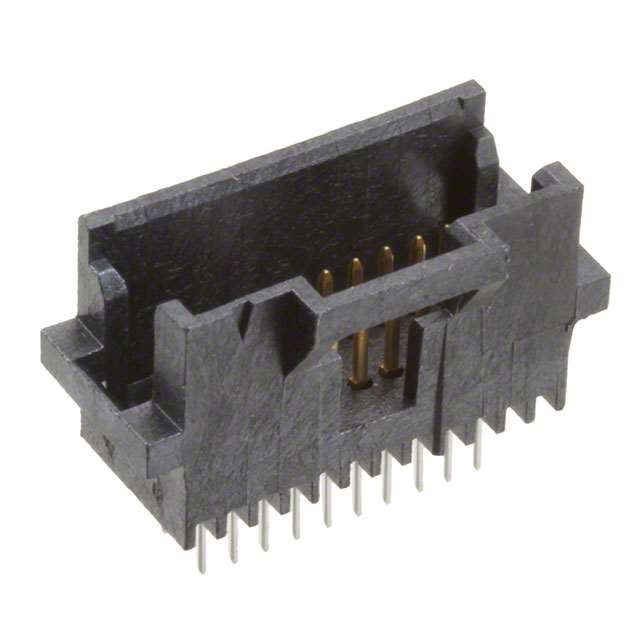

Image may be representation. See specifications for product details.

Product Overview

Part Number:	104666-1
Manufacturer/Brand:	Agastat Relays / TE Connectivity
Product description	CONN HEADER 20POS VERT DUAL GOLD
Datasheets:	104666-1.pdf
RoHs Status	Contains lead / RoHS non-compliant
Stock Condition	41137 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 41137 pcs

Reference Price (In US Dollars)

1134 pcs: $0.796

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$0.796

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of 104666-1

Part Number	104666-1	Manufacturer	Agastat Relays / TE Connectivity
Description	CONN HEADER 20POS VERT DUAL GOLD	Lead Free Status / RoHS Status	Contains lead / RoHS non-compliant
Quantity Available	41137 pcs	Data sheet	104666-1.pdf
Voltage Rating	30VAC	Termination	Solder
Style	Board to Board or Cable	Shrouding	Shrouded - 2 Wall
Series	AMPMODU System 50	Row Spacing - Mating	0.100" (2.54mm)
Pitch - Mating	0.050" (1.27mm)	Packaging	Tube
Overall Contact Length	-	Operating Temperature	-65°C ~ 105°C
Number of Rows	2	Number of Positions Loaded	All
Number of Positions	20	Mounting Type	Through Hole
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Material Flammability Rating	UL94 V-0
Mated Stacking Heights	-	Manufacturer Standard Lead Time	6 Weeks
Lead Free Status / RoHS Status	Contains lead / RoHS non-compliant	Insulation Material	Thermoplastic
Insulation Height	0.390" (9.91mm)	Insulation Color	Black
Ingress Protection	-	Features	-
Fastening Type	Latch Holder	Detailed Description	Connector Header Through Hole 20 position 0.050" (1.27mm)
Current Rating	-	Contact Type	Male Pin
Contact Shape	Circular	Contact Material	Copper Alloy
Contact Length - Post	0.145" (3.68mm)	Contact Length - Mating	0.125" (3.18mm)
Contact Finish Thickness - Post	150.0µin (3.81µm)	Contact Finish Thickness - Mating	30.0µin (0.76µm)
Contact Finish - Post	Tin-Lead	Contact Finish - Mating	Gold
Connector Type	Header	Applications	Automotive, General Purpose, Medical, Telecommunications
